DTC 122
DF. DTC 1-2-2
1-2-2 Open-circuit in solenoid S1 circuit
Principle of operation
Solenoid S1 performs gearshifting in combination with solenoid S2. The solenoid operates when supplied with battery voltage from the TCM, which delivers an upshifting or downshifting signal depending on the speed of the car and the selected driving mode.
Fault description
An open-circuit is present in the solenoid S1 circuit. Gearshifting is possible between 3rd and 4th gears; however, lockup is disabled and gearshifting is 'hard'. The emergency program is activated and the MIL lights.
Troubleshooting should indicate if open-circuit is in leads, in solenoid itself or in TCM.
Circuit description

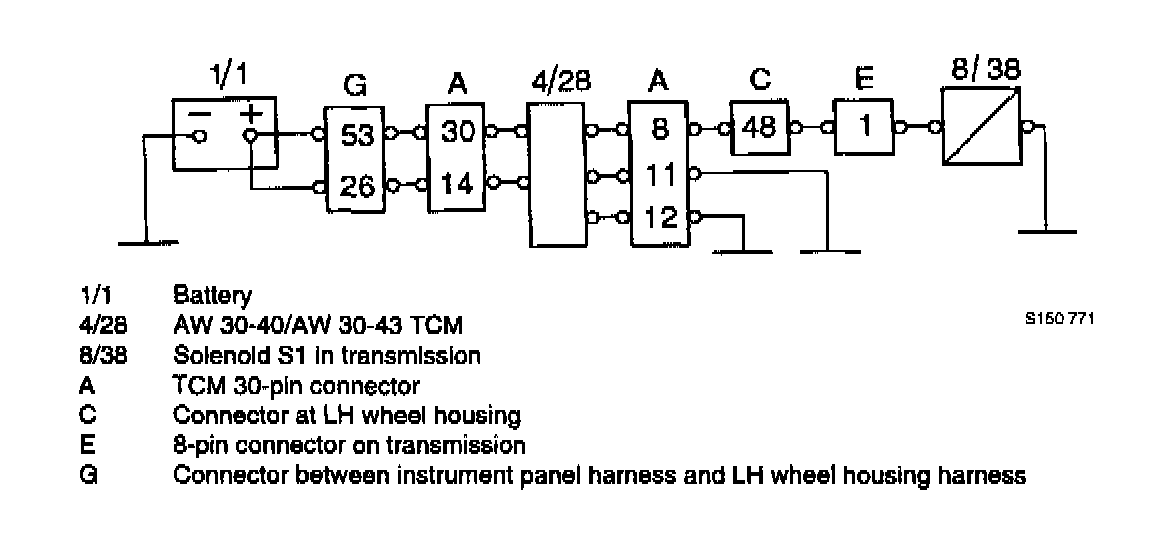

The circuit consists of the TCM, three connectors and solenoid S1 in the transmission.
1
Testing solenoid S1 in test mode 4
- Move gear selector to position P.
Test solenoid S1 in test mode 4 use stethoscope to hear solenoid click more clearly. Displaying & Reading Trouble Codes
- If solenoid does not click, fault is permanent.
- If solenoid clicks, fault is occurring only intermittently under particular conditions, making it considerably more difficult to locate.
2
Measuring resistance of solenoid and wiring
- Switch off ignition.
- Connect break-out box to wiring.
Measure resistance between # 26 (SL) and # 12 (SG) with ohmmeter.
- If instrument indicates 10-15 Ohms, solenoid and leads are OK.
Check leads and connectors for open-circuits and poor connections as described in General tests. Component Tests and General Diagnostics
- If this check indicates that leads and connections are OK, DTC is due to intermittent fault. Return to Testing and Inspection. Diagnostic Procedures
If instrument indicates other value, proceed to next step.
3
Measuring solenoid resistance
- Switch off ignition.
- Measure at connector E on transmission (solenoid side).
Connect ohmmeter between terminal 1 and ground terminal on transmission.
- If instrument indicates under 10 Ohm or over 15 Ohm, solenoid S1 or wiring between solenoid and connector on transmission is faulty. Proceed to next step.
- If instrument indicates 10-15 Ohm, solenoid S1 and wiring are OK.
Return to Testing and Inspection. Diagnostic Procedures
TCM may be faulty if DTC is again displayed after test driving although test indicates that resistance is correct.
4
Measuring resistance of control system
- Remove Transmission pan to gain access to Solenoids.
- Disconnect solenoid S1 connector.
Measure resistance between pin on solenoid S1 and ground terminal on transmission.
- Solenoid is faulty if instrument indicates under 10 Ohm or over 15 Ohm. Replace solenoid.
- If instrument indicates 1O-15 Ohm, solenoid S1 is OK. In that case, fault is in wiring hamess between transmission connector and solenoid S1. Replace harness.
Return to Testing and Inspection. Diagnostic Procedures
