Home
>>
Saab
>>
2004
>>
9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Relay
>>
Diagrams
>>

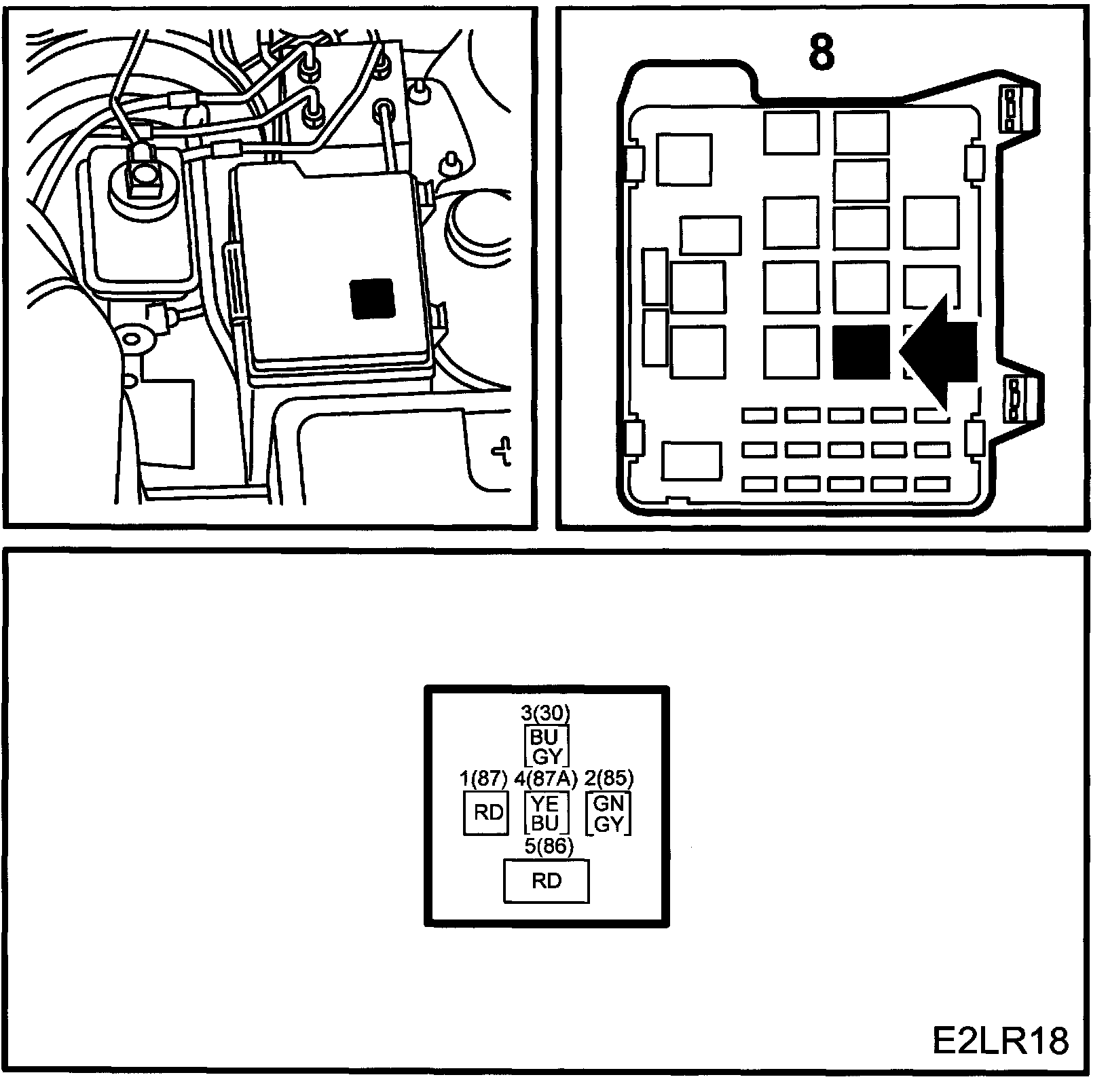

Dipped Beam Relay (8)
Dipped Beam Relay (8)
Dipped Beam Relay (8):
