Component Locations

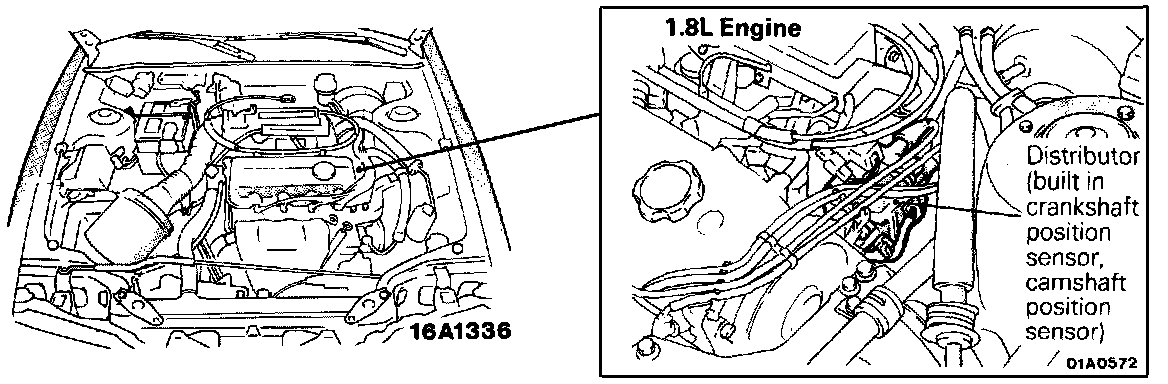

Crankshaft & Camshaft Position Sensors:









Built into the distributor, on the left side of the cylinder head.
