Manufacturer Code Charts: 15

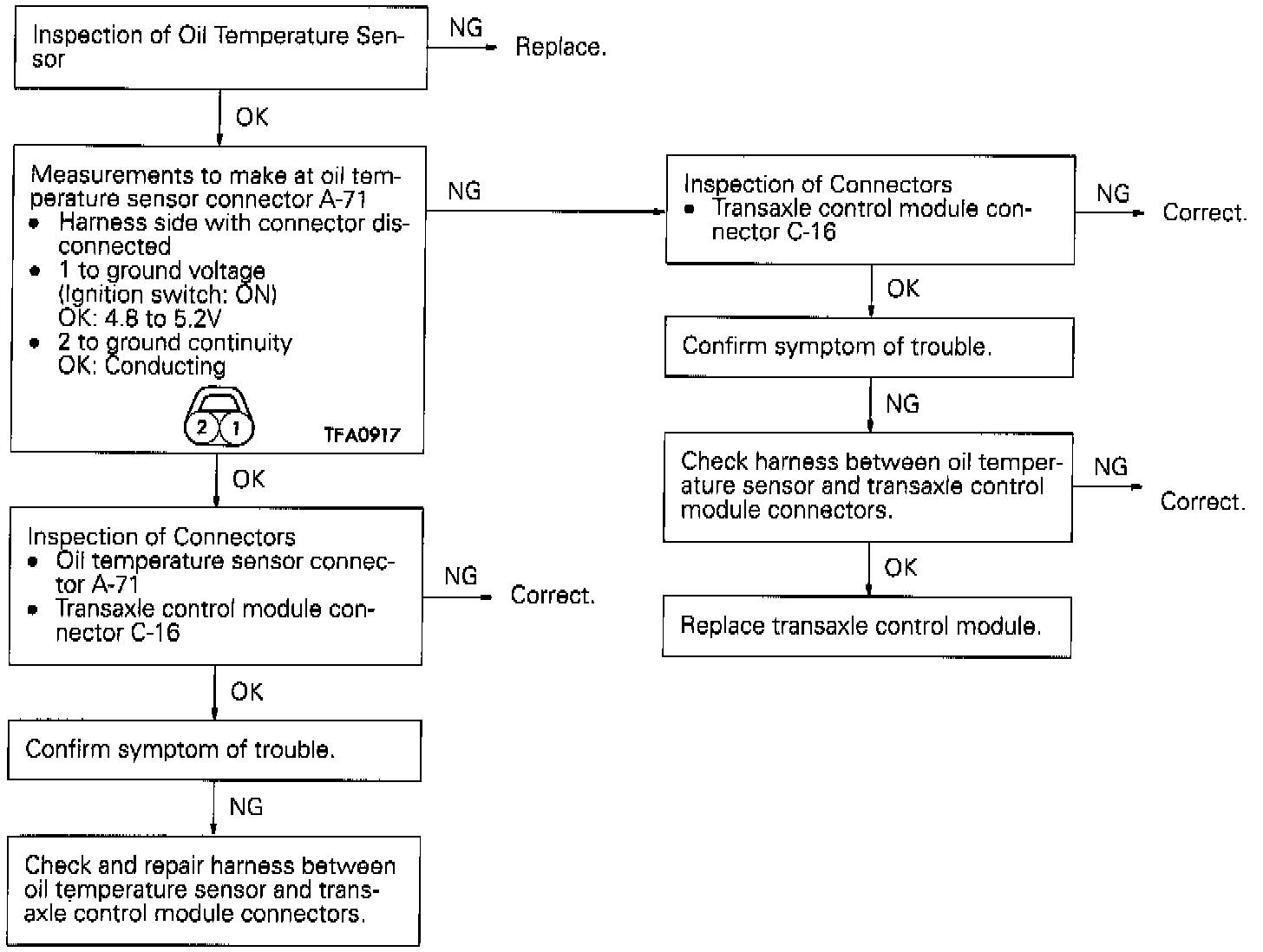

Code No. 15 Oil Temperature Sensor System

Description

When the oil temperature sensor output is over 4.4V even after 10 minutes of operation, code No. 15 is output to indicate that there is an open circuit in the oil temperature sensor (meaning the oil temperature does not rise).

Probable Cause of Trouble

- Defective oil temperature sensor
- Defective connector
- Defective transaxle control module
