Plymouth
>>
1990
>>
Sundance L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-10 Repairing "Ign Reference Signal" Fault
>>
Part 1 of 2
Part 1 of 2

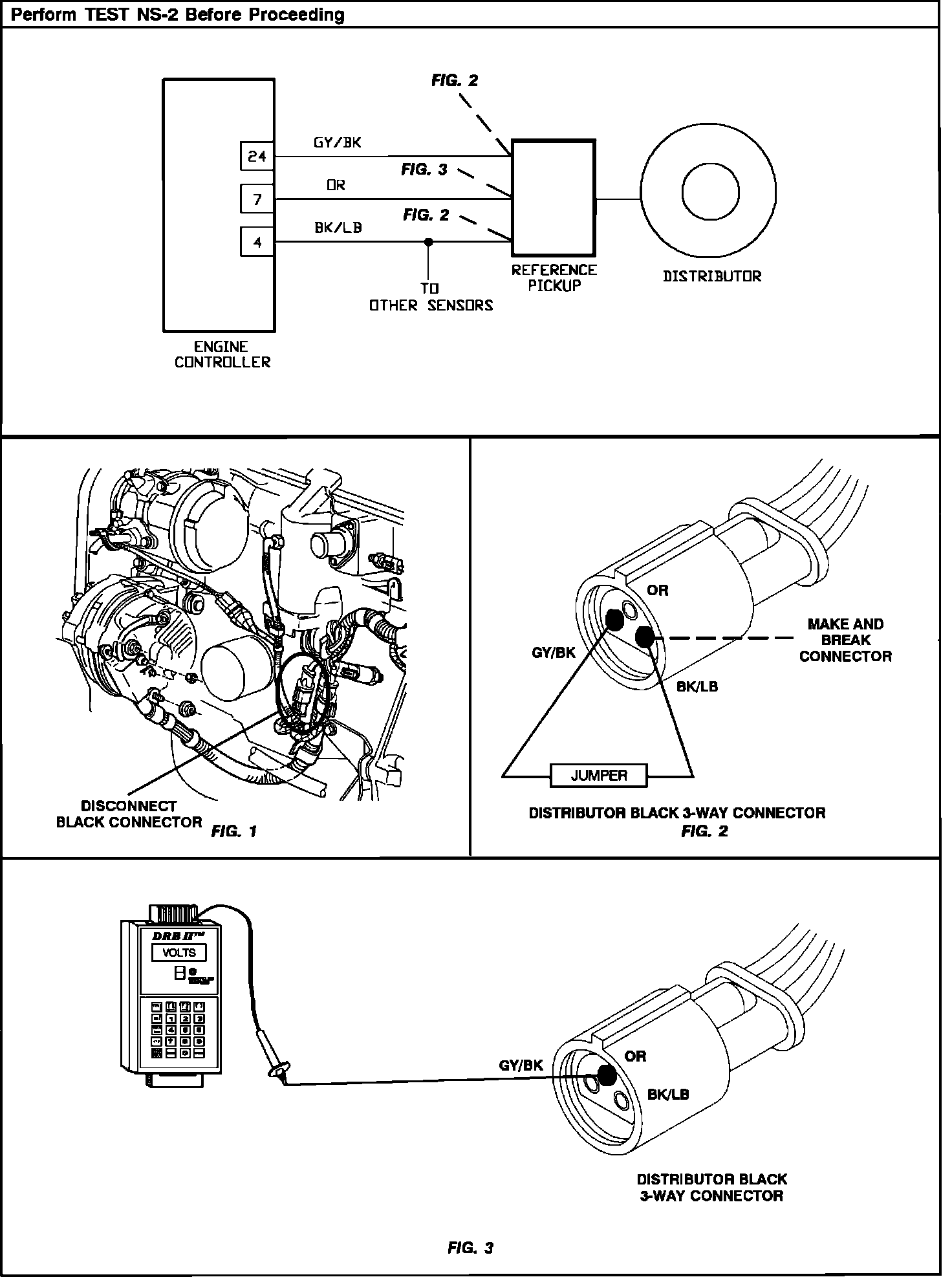

Test NS-10 - Repairing Fault Message "Ignition Reference Signal":
Test NS-10 - Repairing Fault Message "Ignition Reference Signal":
