Home >> Plymouth >> 1990 >> Sundance L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-34 Checking Coolant & Throttle Position Sensors

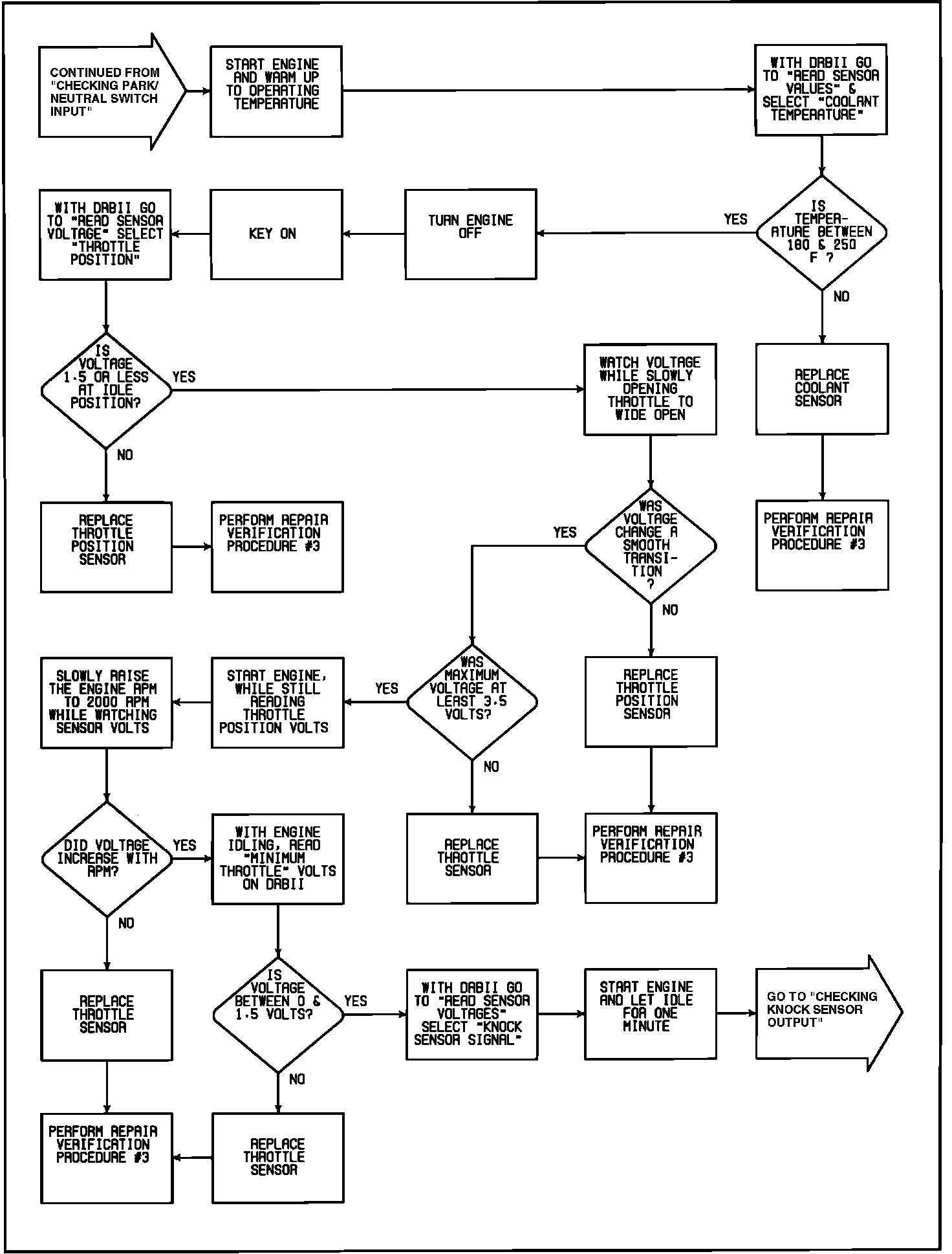

DR-34 Checking Coolant & Throttle Position Sensors

Checking Coolant And Throttle Position Sensors:
