System Schematics
System Schematics
Windshield Wiper & Washer Less Intermittent:

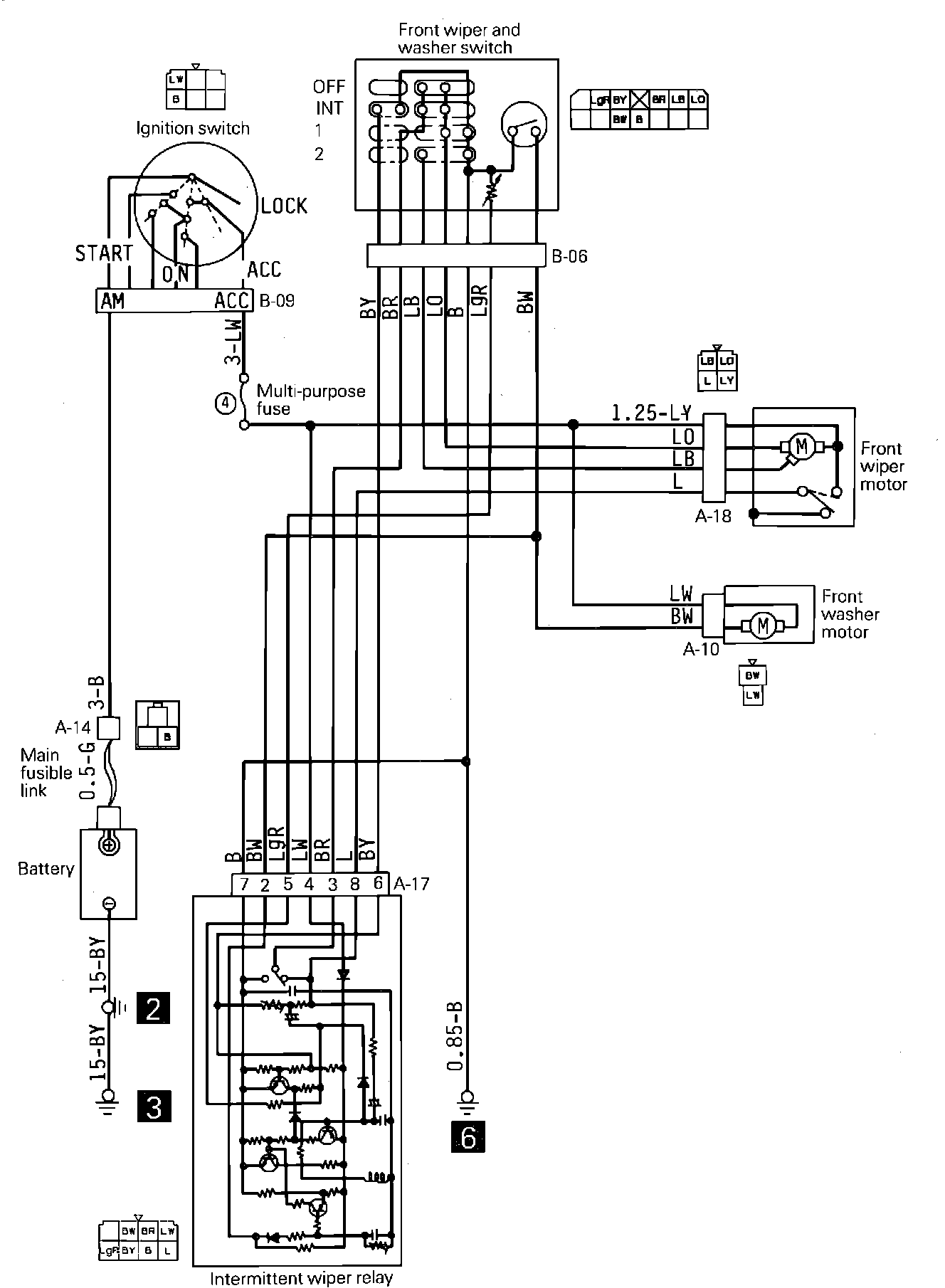

Windshield Wiper & Washer With Intermittent:
