Home >> Plymouth >> 1985 >> Caravelle L4-156 2.6L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Door Switch >> Diagrams >> Electrical Diagrams >> Ignition Key & Seatbelt Warning Wiring Circuit >> Part 1 of 2

Part 1 of 2

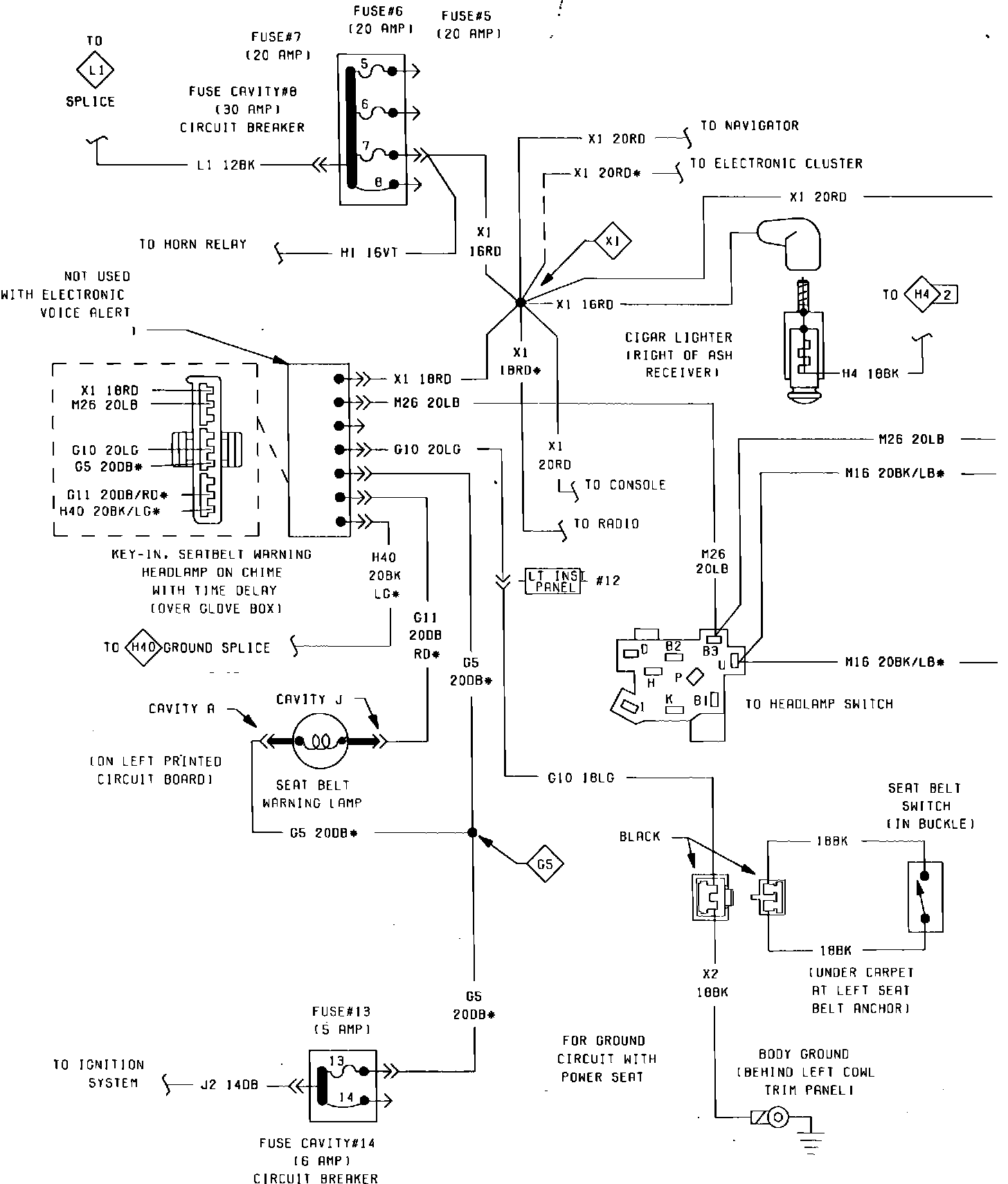

Fig. 54 Ignition Key-In & Seatbelt Warning System Wiring Circuit. 1985 Seatbelt:
