Home >> Plymouth >> 1985 >> Caravelle L4-156 2.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram >> Left Side >> Part 2 of 2

Part 2 of 2

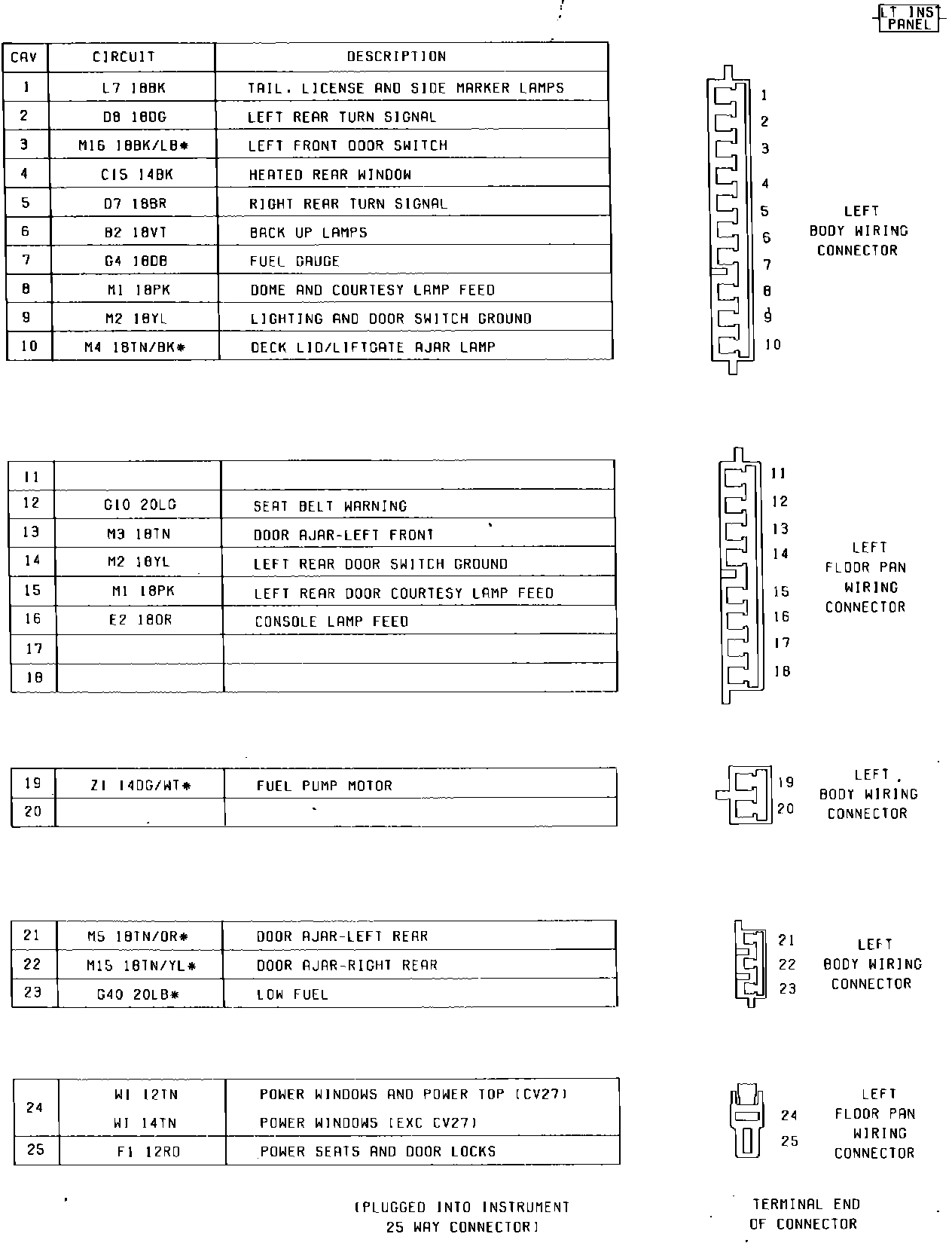

Fig. 8 Instrument To Body Connector (25 Way Left Side, Part 2 of 2). 1985:
