Home >> Lincoln >> 1993 >> Town Car V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Compact Disc Player (CD)

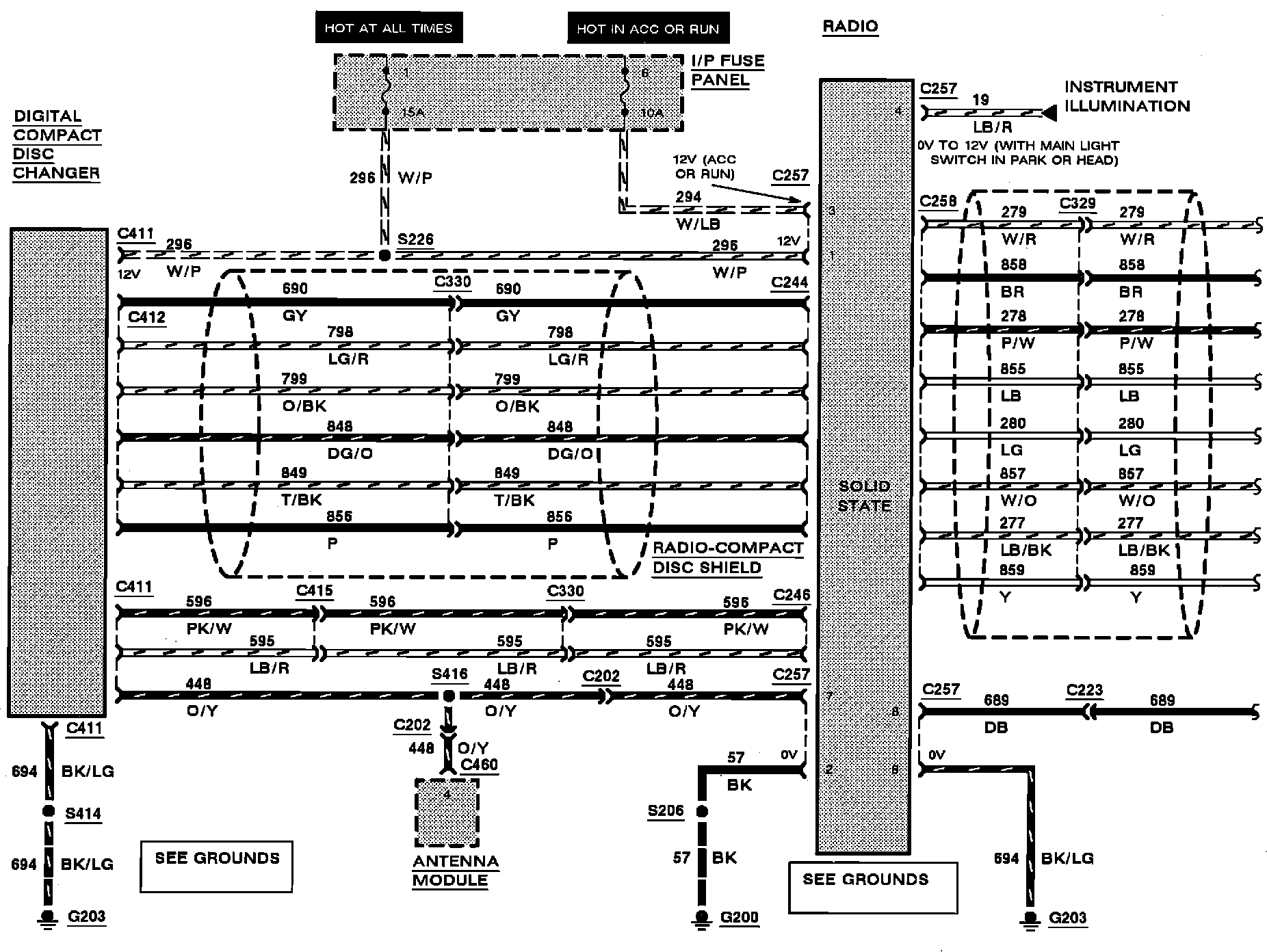

Compact Disc Player (CD)

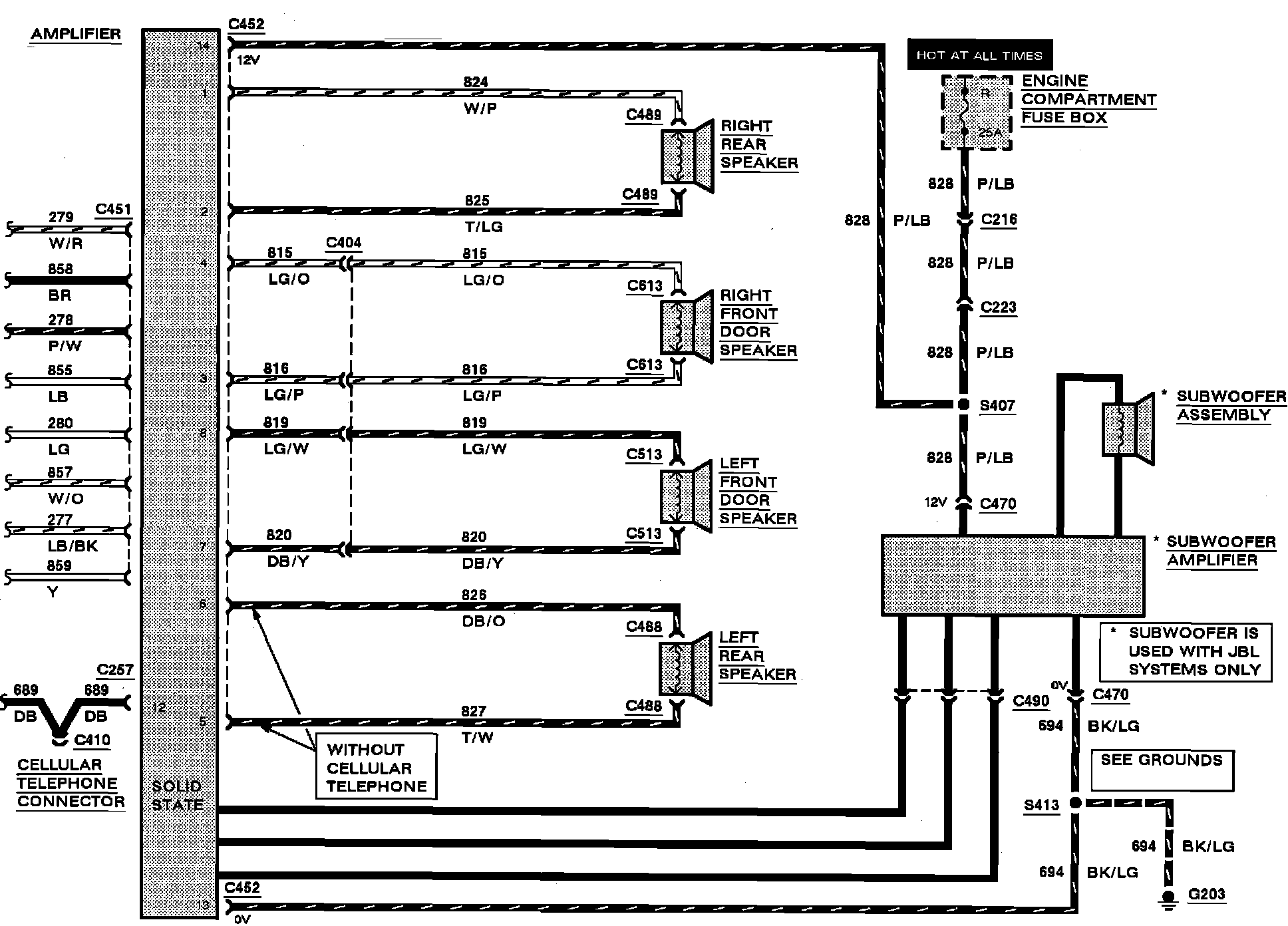

Radio (Premium Sound Or JBL System):



Radio (Premium Sound Or JBL System):
