Land Rover
>>
2008
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C0001 - C0100
>>

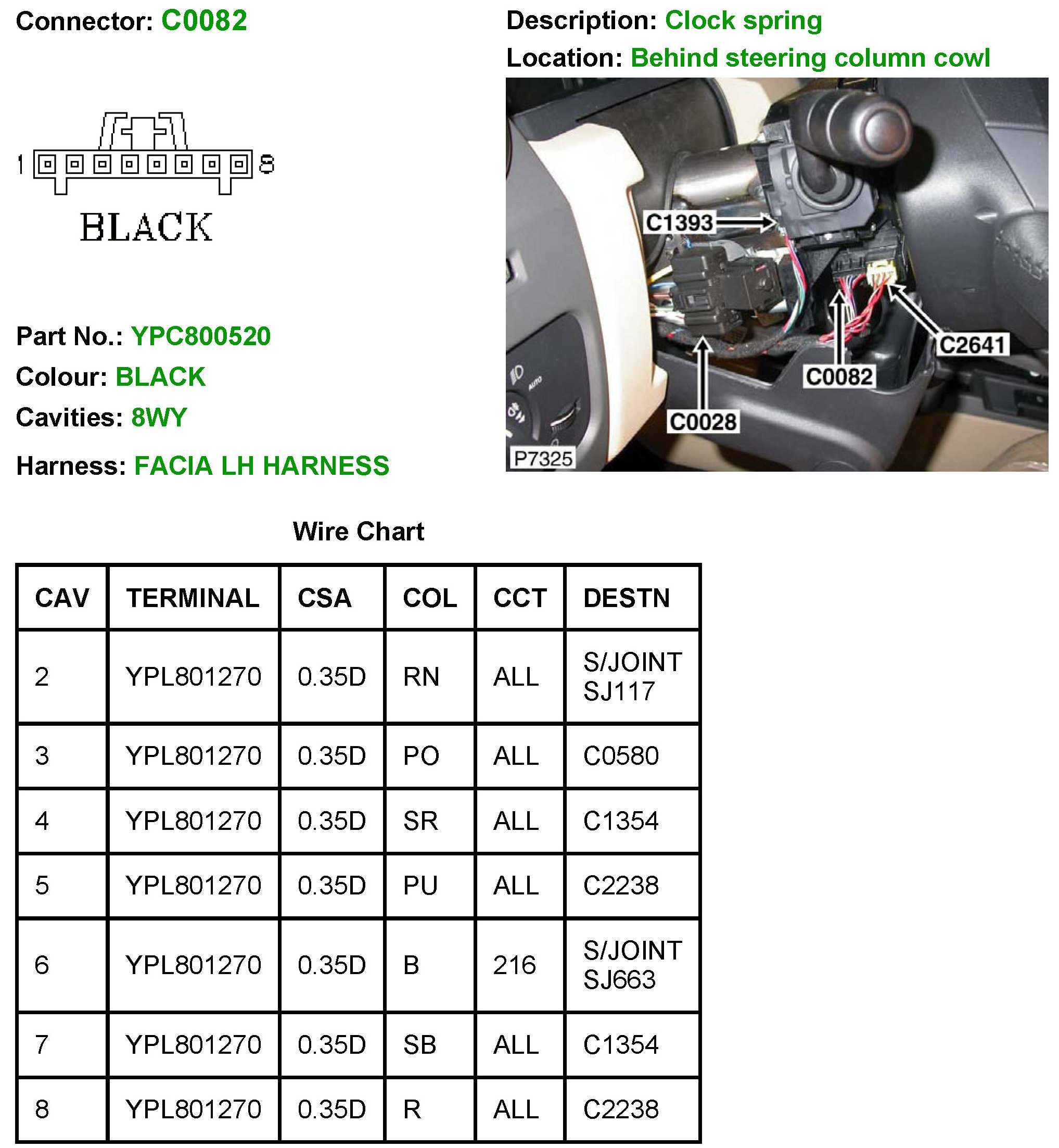

C0082
C0082
C0082:
C0082:
