Home >> Land Rover >> 2005 >> LR3 (LA) V6-4.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C2301 - C2400 >> C2357

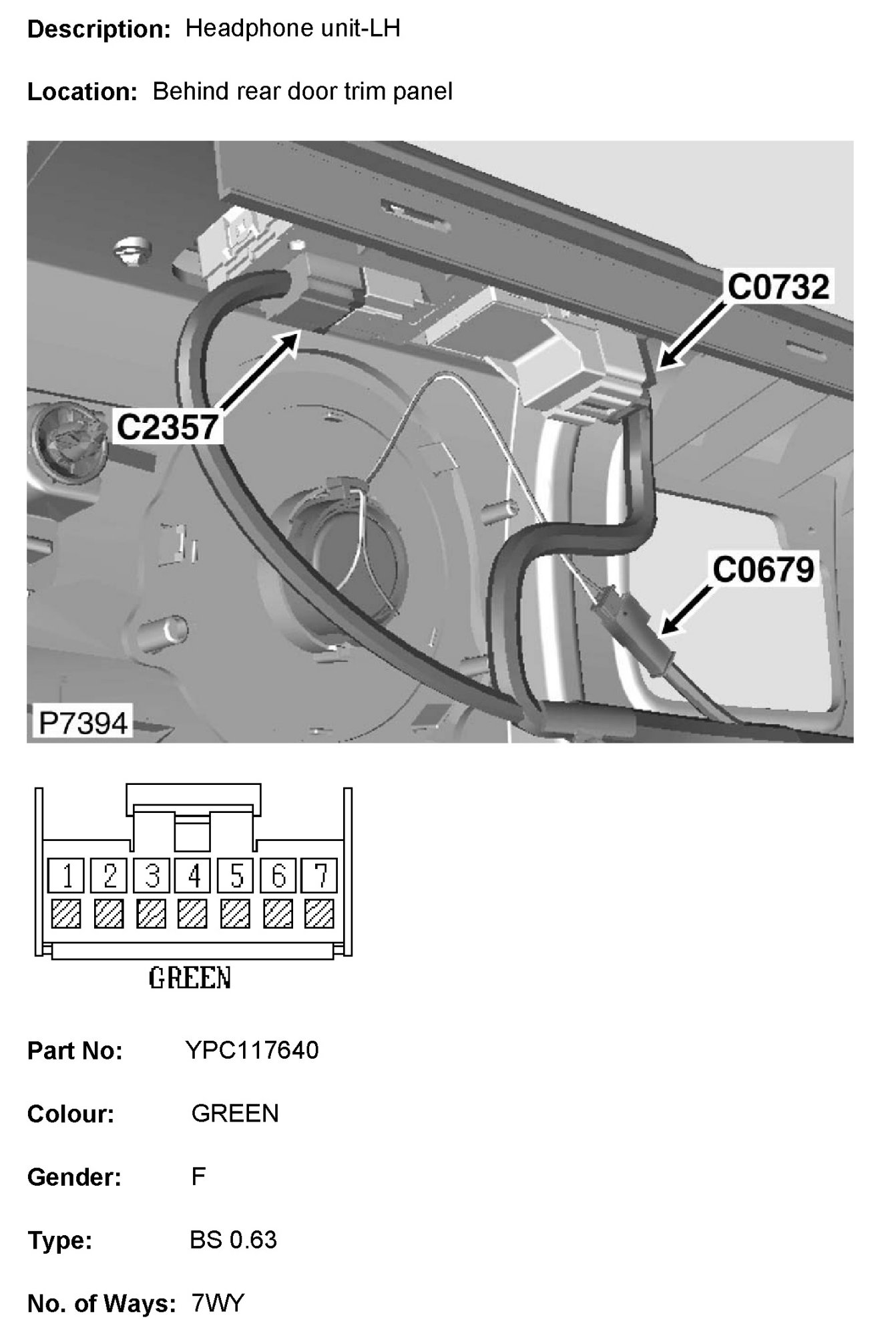

C2357

C2357 (Part 1):



C2357 (Part 2):



C2357:
