Fig. 16.1 (In-Car Entertainment: Premium)
Fig. 16.1 (In-Car Entertainment: Premium)
Fig. 16.1 (In-Car Entertainment: Premium)

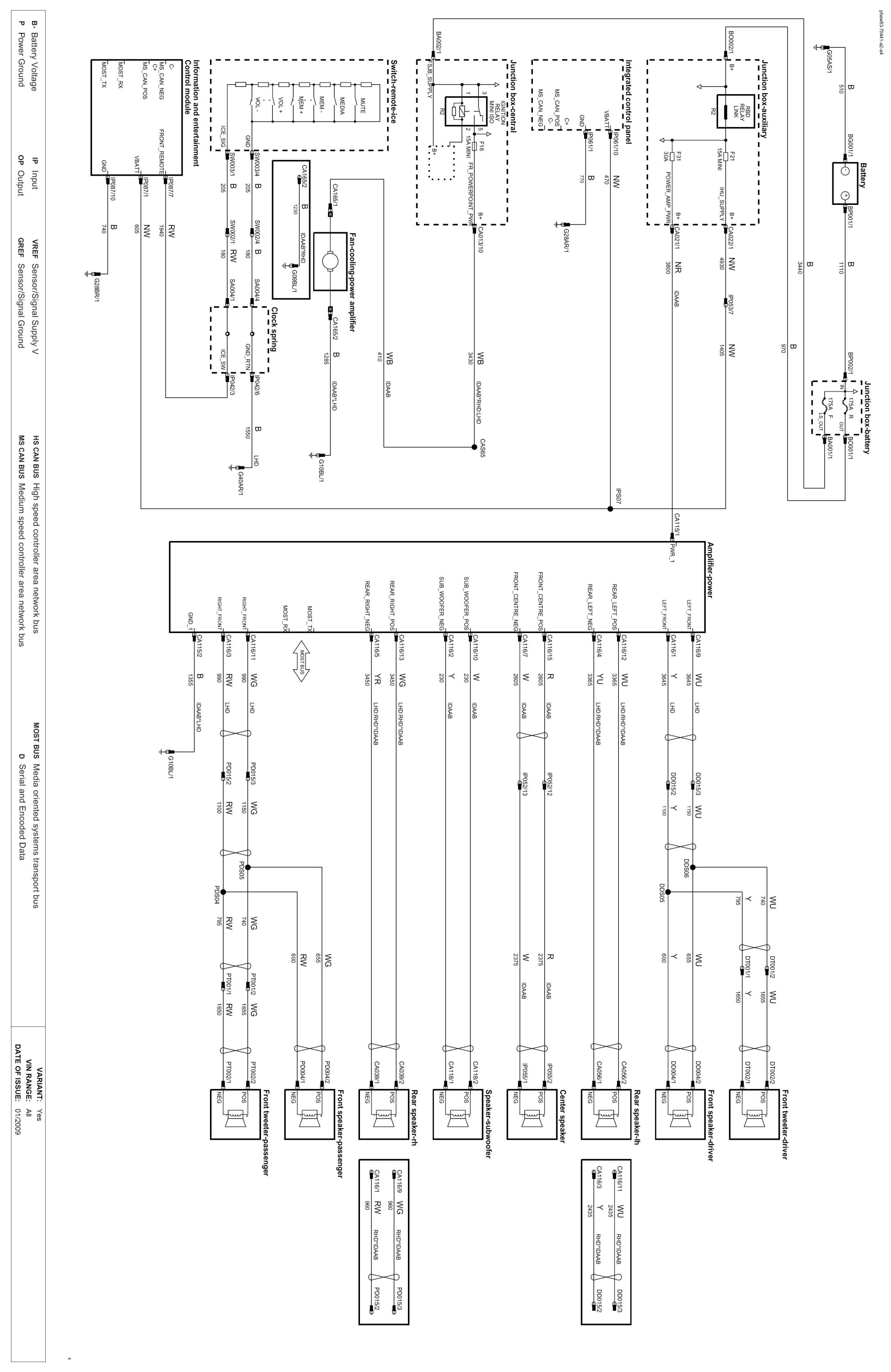

Diagram Figure 16.1:
