Oil Level Indicator and Tube

Oil Level Indicator and Tube

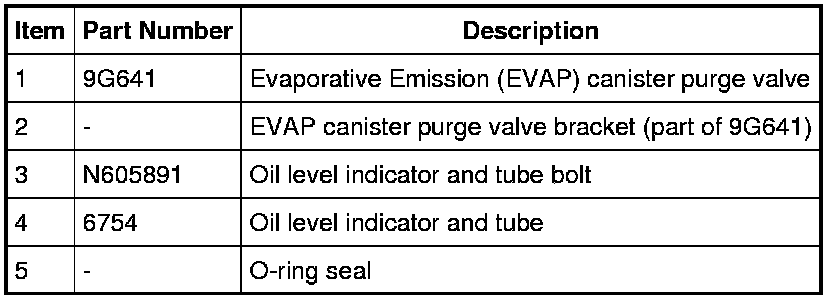

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Detach the Evaporative Emission (EVAP) canister purge valve from the bracket and position aside.

3. Remove the oil level indicator and tube bolt.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the oil level indicator and tube from the cylinder block.
- Discard the O-ring seal.

5. NOTE: Lubricate the new oil level indicator tube O-ring seal with clean engine oil prior to installation.

To install, reverse the removal procedure.
