Test B

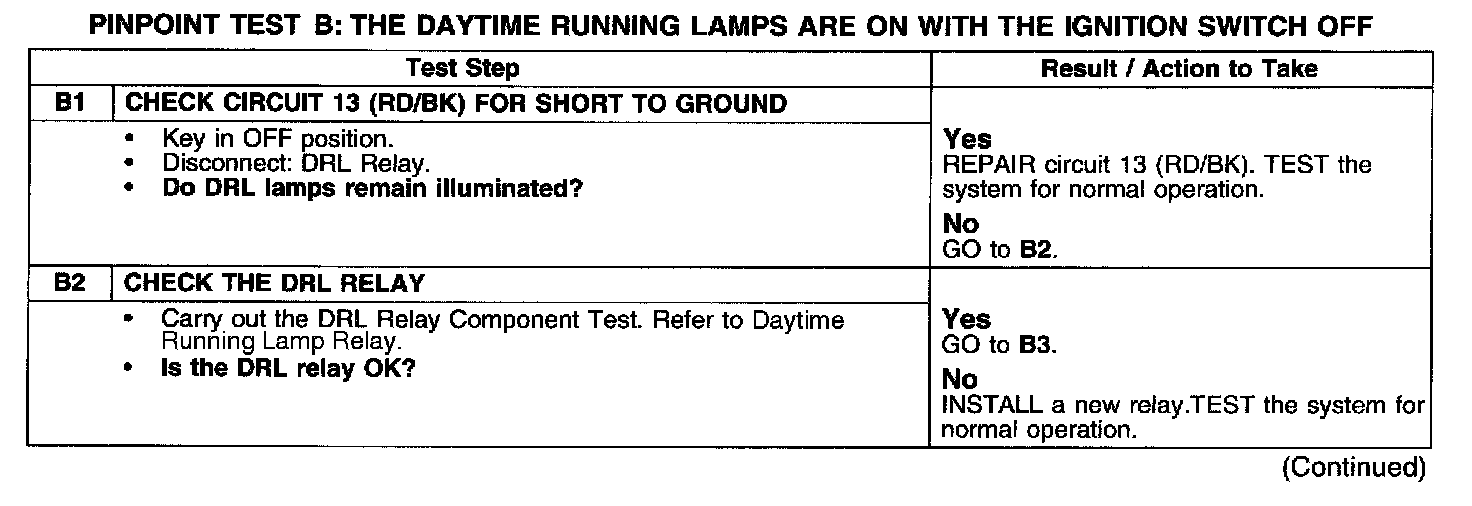

PINPOINT TEST B: THE DAYTIME RUNNING LAMPS ARE ON WITH THE IGNITION SWITCH OFF


Test B1-B2:






Test B3-B4:
