Power Mirror Switch: Service and Repair
REMOVAL1. Remove the instrument panel insulator.
^ Disconnect the lamp electrical connector from the instrument panel insulator.
2. Remove the instrument panel steering column cover.
1 Remove the pin-type retainers.
2 Release the instrument panel steering column cover.
^ Disconnect the electrical connector.
3. Position the outer instrument panel finish panel aside.

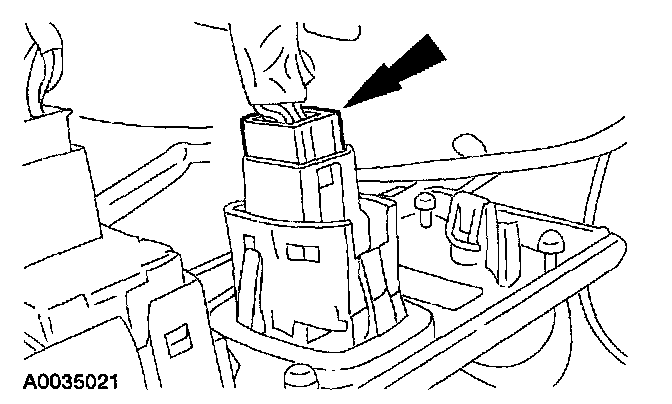

4. Disconnect the exterior mirror control switch electrical connector.
5. Depress the locking tabs and remove the exterior mirror control switch.
INSTALLATION
1. To install, reverse the removal procedure.
