Headlamp: Service and Repair

REMOVAL







1. Remove the sight shield.
- Twist the clips.







2. Remove the headlamp retainers.

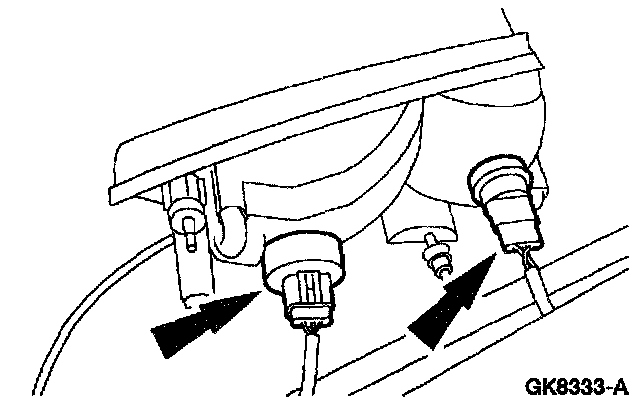

3. Remove the headlamp assembly.
^ Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
