Compact Disc Player (CD): Service and Repair

WARNING: USE ONLY PROPERLY INSTALLED FCC APPROVED RADIO TRANSMITTING EQUIPMENT. USE OF OTHER TRANSMITTING EQUIPMENT MAY CAUSE THE VEHICLE TO MALFUNCTION OR STALL. IF THE ENGINE STALLS, POWER BRAKE AND POWER STEERING ASSIST WILL STOP. CONSULT YOUR AUTHORIZED DEALER BEFORE INSTALLING ANY RADIO TRANSMITTER.

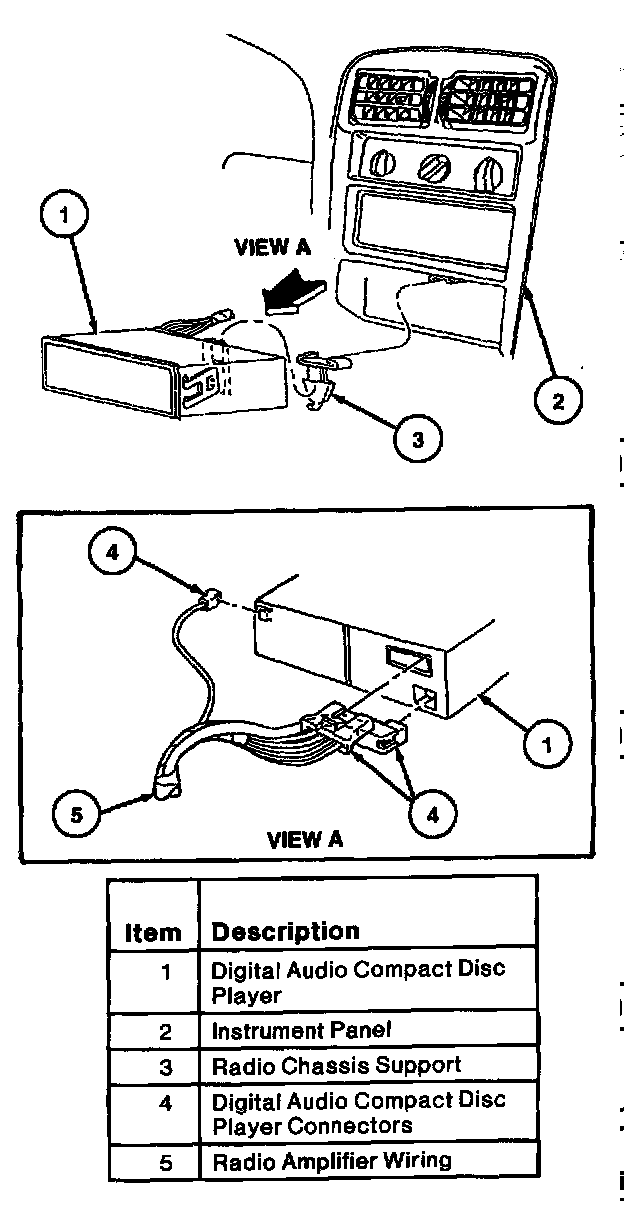

REMOVAL
1. Disconnect battery ground cable.

CAUTION: Do not use excessive force when installing radio removal tool, as this will damage retaining clips and make digital audio compact disc player removal difficult.

2. Install Radio Removing Tool T87P-19061-A into compact disc player face plate. Push tools in approximately 25.4 mm (1 inch) to release retaining clips.
3. Apply a slight spreading force on tools and pull digital audio compact disc player from instrument panel.
4. Disconnect the wiring connectors and remove the digital audio compact disc player.

INSTALLATION
1. Connect wiring connectors to digital audio compact disc player.
2. Slide digital audio compact disc player into instrument panel, making sure rear radio chassis support is engaged on support rail.
3. Push digital audio compact disc player inward until retaining clips are fully engaged.
4. Connect battery ground cable.
