Fuse 30

Fuse 30 - protects the following circuits:
- Instrument Cluster
- Air Bag Diagnostic Module
- Power Antenna
- Instrument Interface Module

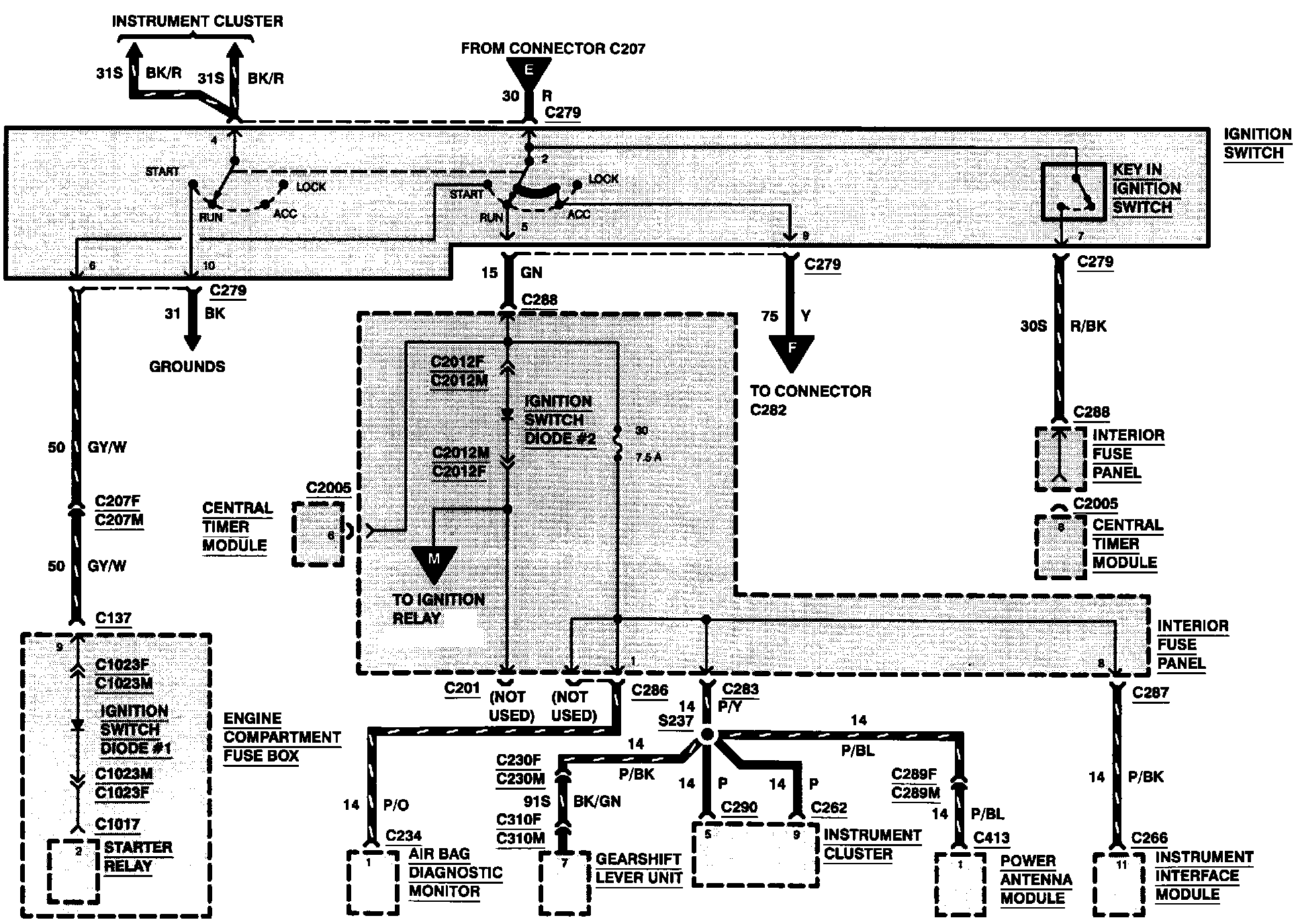

Power Distribution:
