QT7 Perform VOM Hookup

- Verify that a failure has been detected in the ABS. (An illuminated anti-lock brake warning indicator in the Key ON-Engine Running mode indicates a present failure. If the anti-lock brake warning indicator is not illuminated in Key ON-Engine Running mode but symptom exists, it may indicate a past or intermittent problem.)

- Key OFF.

- Access the Data Link Connector (DLC) located in the engine compartment.

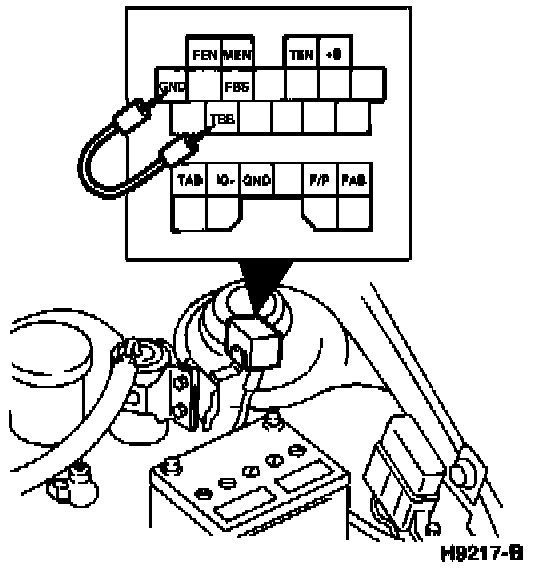

- Connect a jumper wire at the DLC from "TBS" (Test Brake System) to "GND" terminals.

Data Link Connector:

- Connect an analog VOM between "FBS" (Failure Brake System) terminal and engine ground.

- Set the VOM on a DC voltage range to read from 0 to 20 volts.

- Is the jumper wire and VOM hooked up properly?

YES -- Proceed to QT8. QT8 Perform ABS Diagnostic Trouble Code Retrieval

NO -- Re-attempt this step. Service any faults if necessary.
