Control Module Logic Specifications







NOTE: Codes 11, 12, 13, and 14 can all be set by conditions listed in this chart.

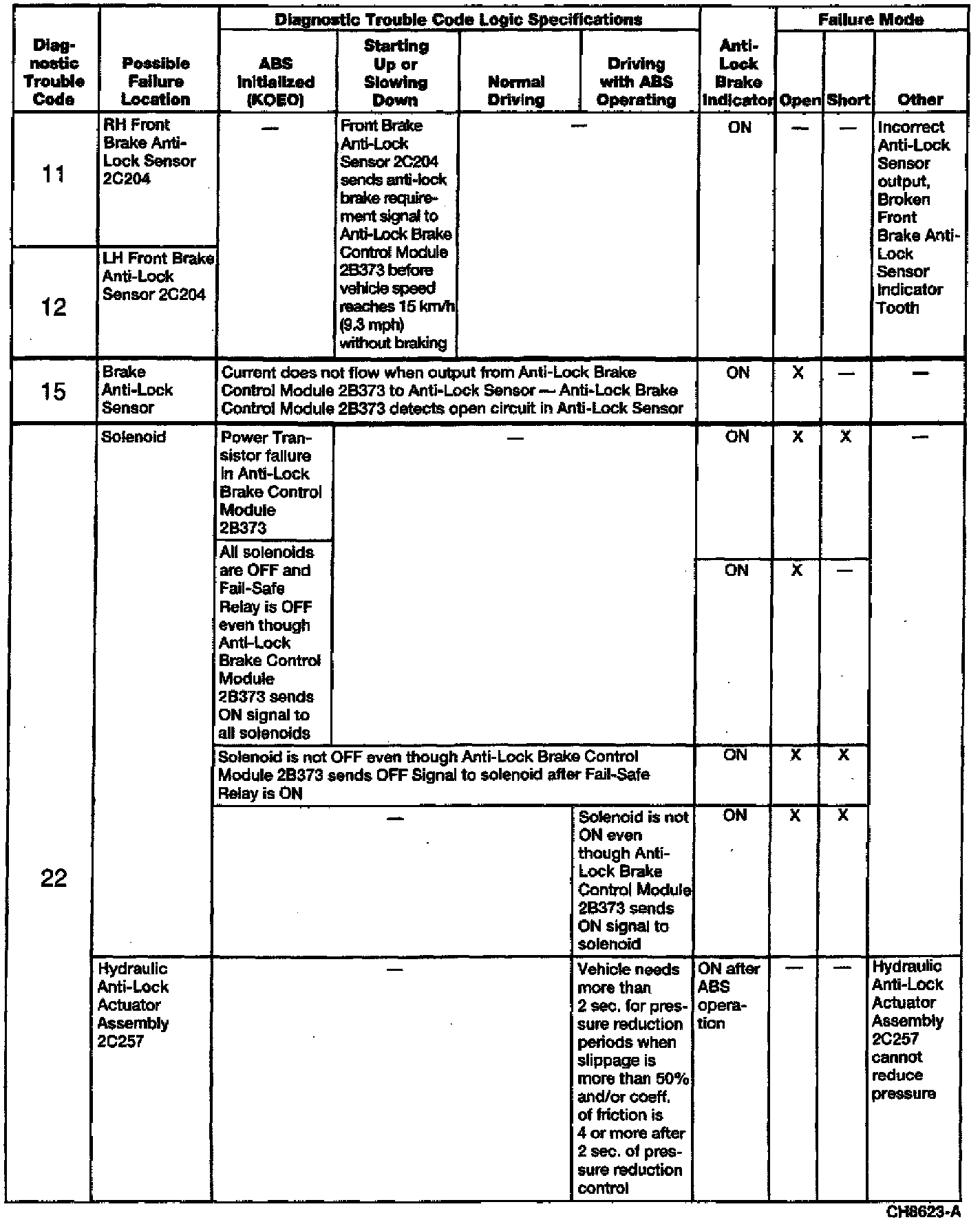

Code Chart:





Code Chart:





Code Chart:
