Home >> Ford >> 1991 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> AFL Front Left Wheel Sensor >> AFL1 & AFL2

AFL1 & AFL2

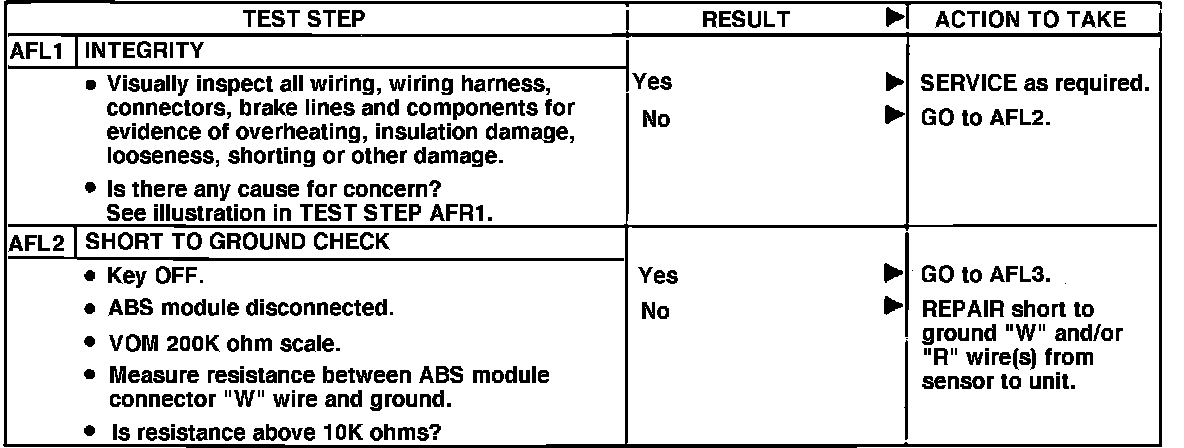

Fig. 12 Pinpoint Test AFL. Front Left Wheel Sensor (Part 1 Of 3):
