Less Premium Sound

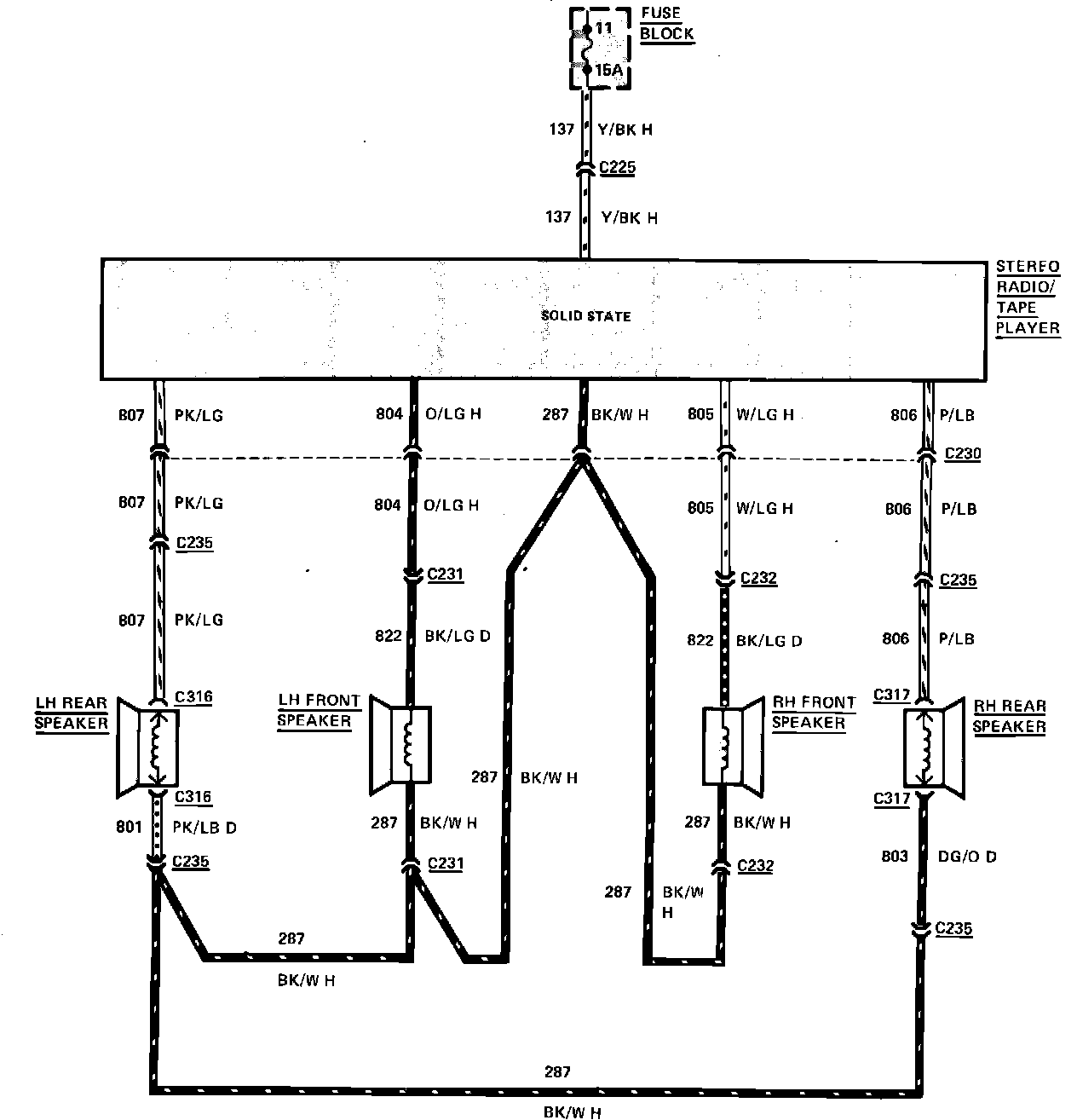

Fig. 84 Radio & speaker wiring circuit. 1983-84 Escort, EXP, Lynx & 1983 LN7 with stereo radio less premium sound:
