Eagle
>>
1996
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>
TC-181A O2 Sensor 2/1 Shorted to Ground
TC-181A O2 Sensor 2/1 Shorted to Ground
Related Images:

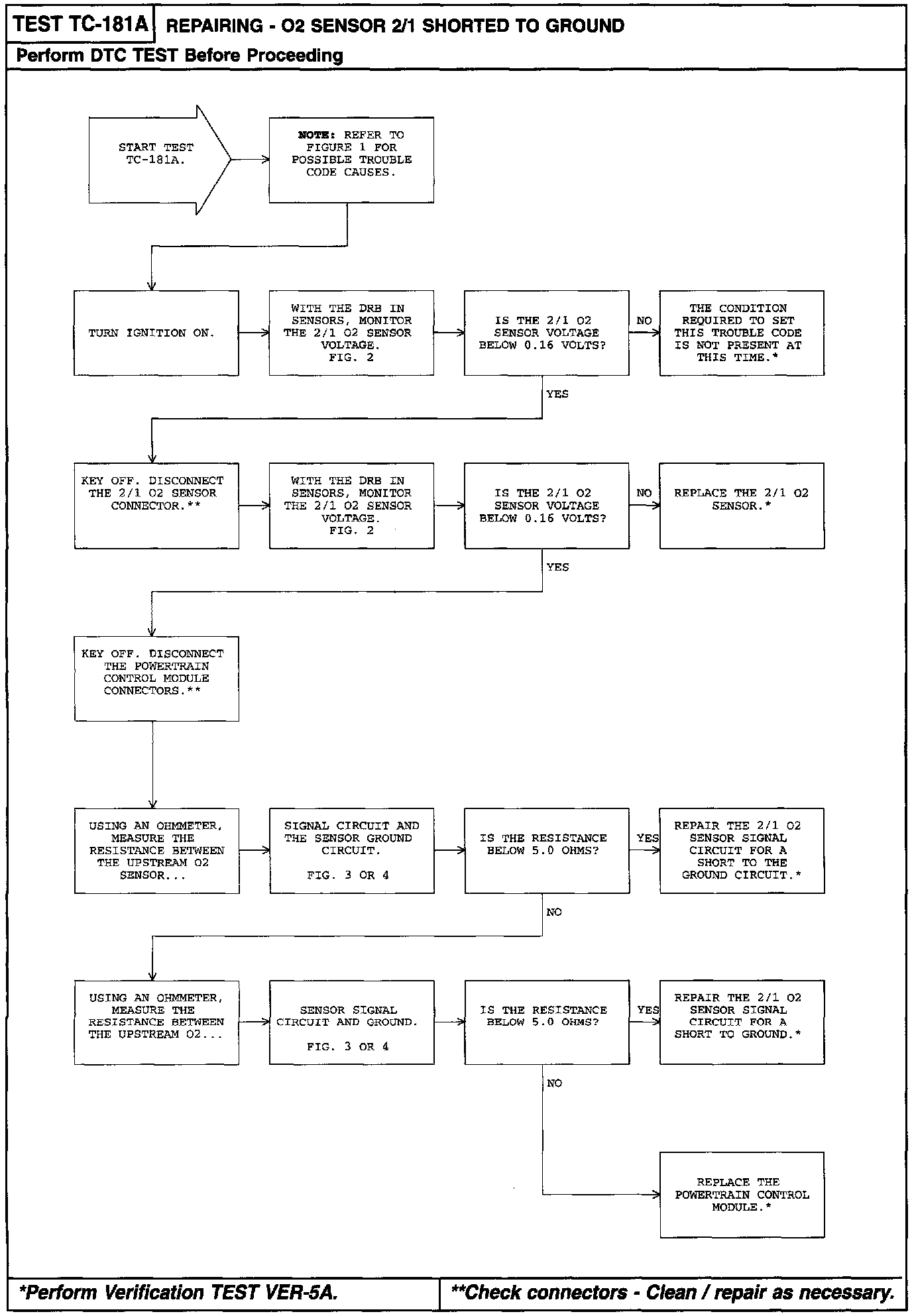

Flow Chart:
