Home
>>
Eagle
>>
1996
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System With Remote Keyless Entry (RKE)
>>

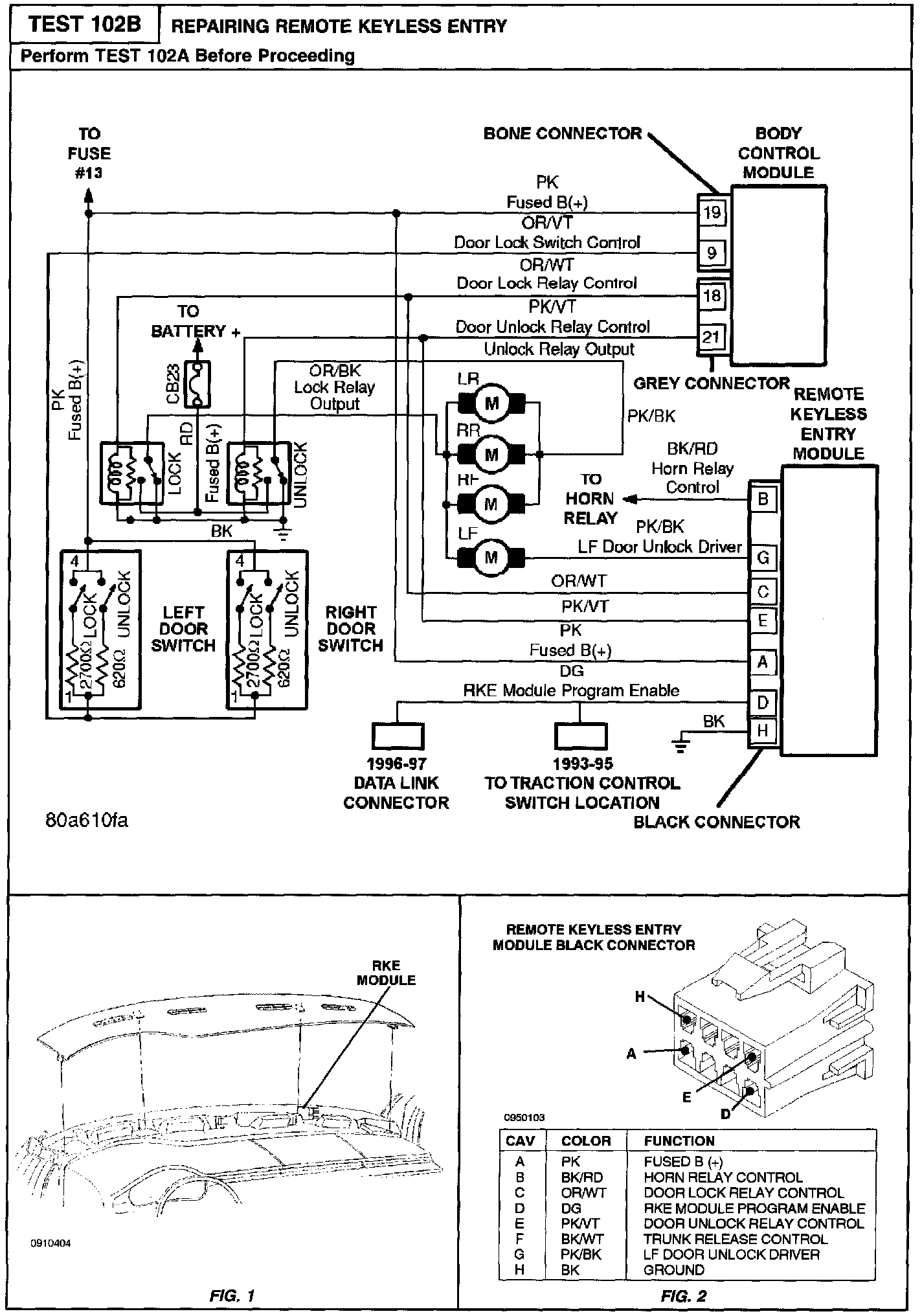

102B Remote Keyless Entry
102B Remote Keyless Entry
Related Images:
Diagnostic Chart:
