Crankshaft Position Sensor: Service and Repair

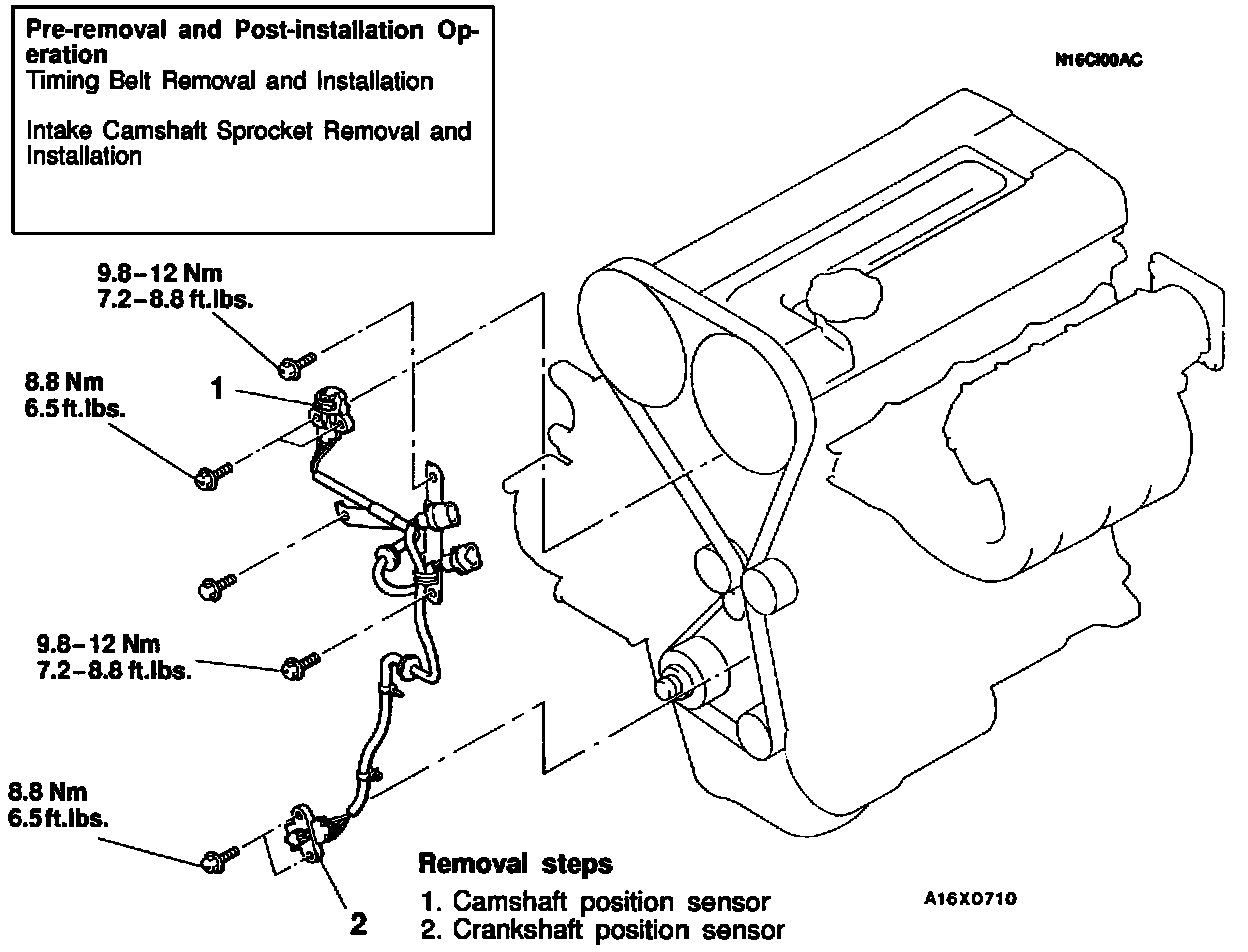

Camshaft And Crankshaft Position Sensor - Removal And Installation:





REMOVAL
1. Camshaft position sensor
2. Crankshaft position sensor

INSTALL
1. Crankshaft position sensor
2. Camshaft position sensor
