Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Grounds >> Connector and Ground Index >> Part 3 of 3

Part 3 of 3

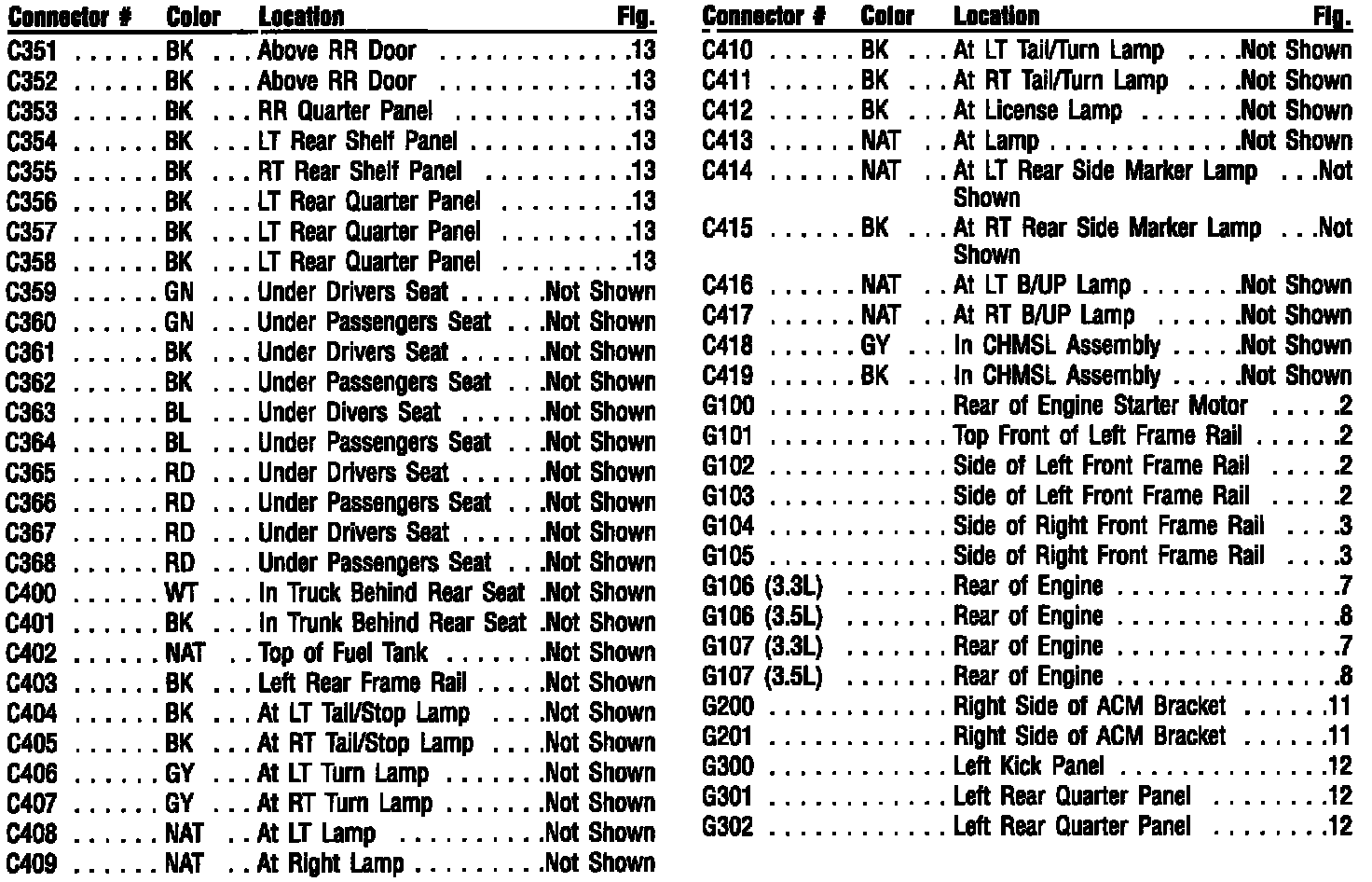

Connector Locations Diagram Index (Part 3 Of 3):
