Vehicles For Canada

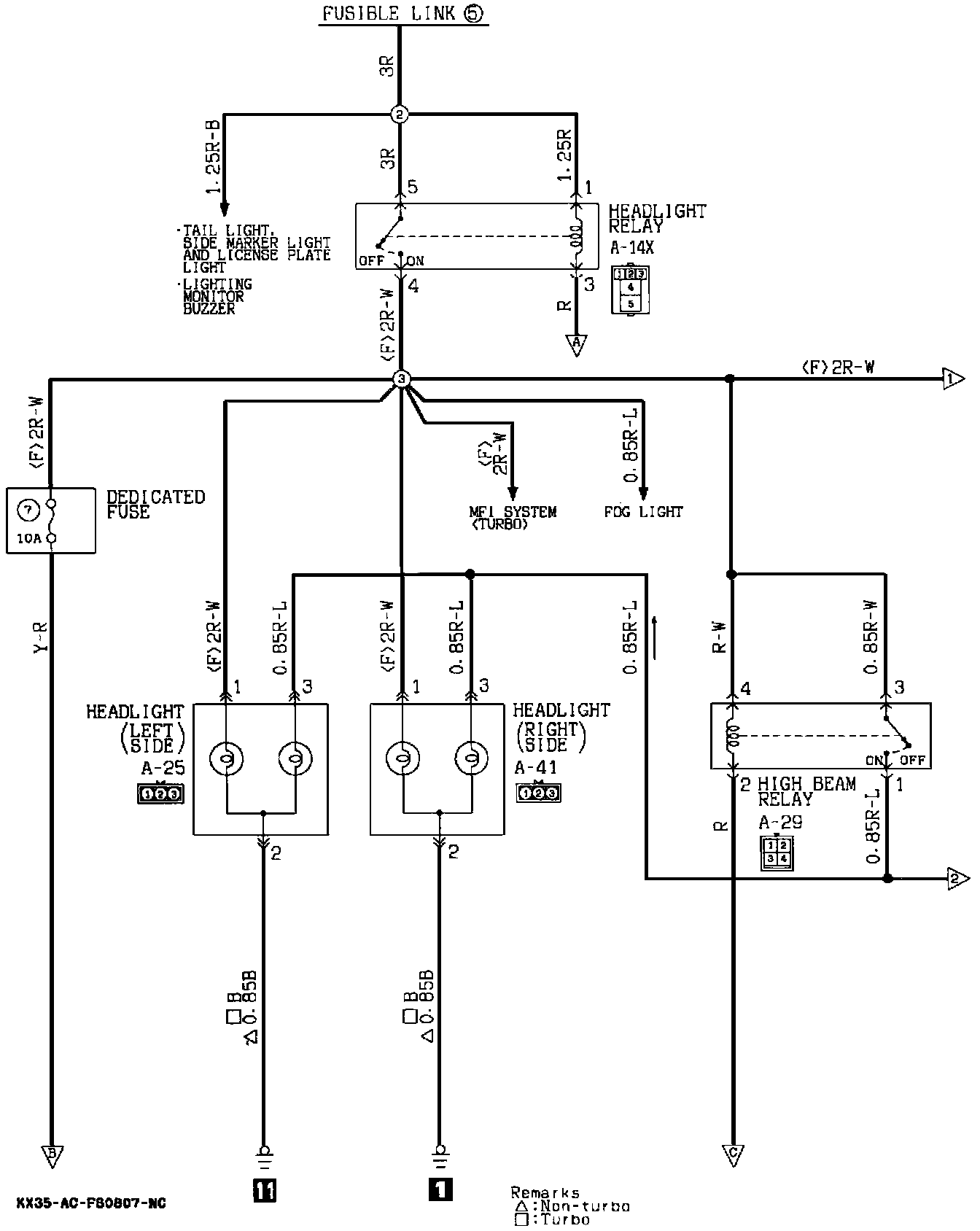

Headlight Circuit (Part 1 Of 3):



Headlight Circuit (Part 2 Of 3):



Headlight Circuit (Part 3 Of 3):
