Eagle
>>
1995
>>
Summit Wagon FWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Delivery and Air Induction
>>
System Diagram
>>
With California Emissions
With California Emissions

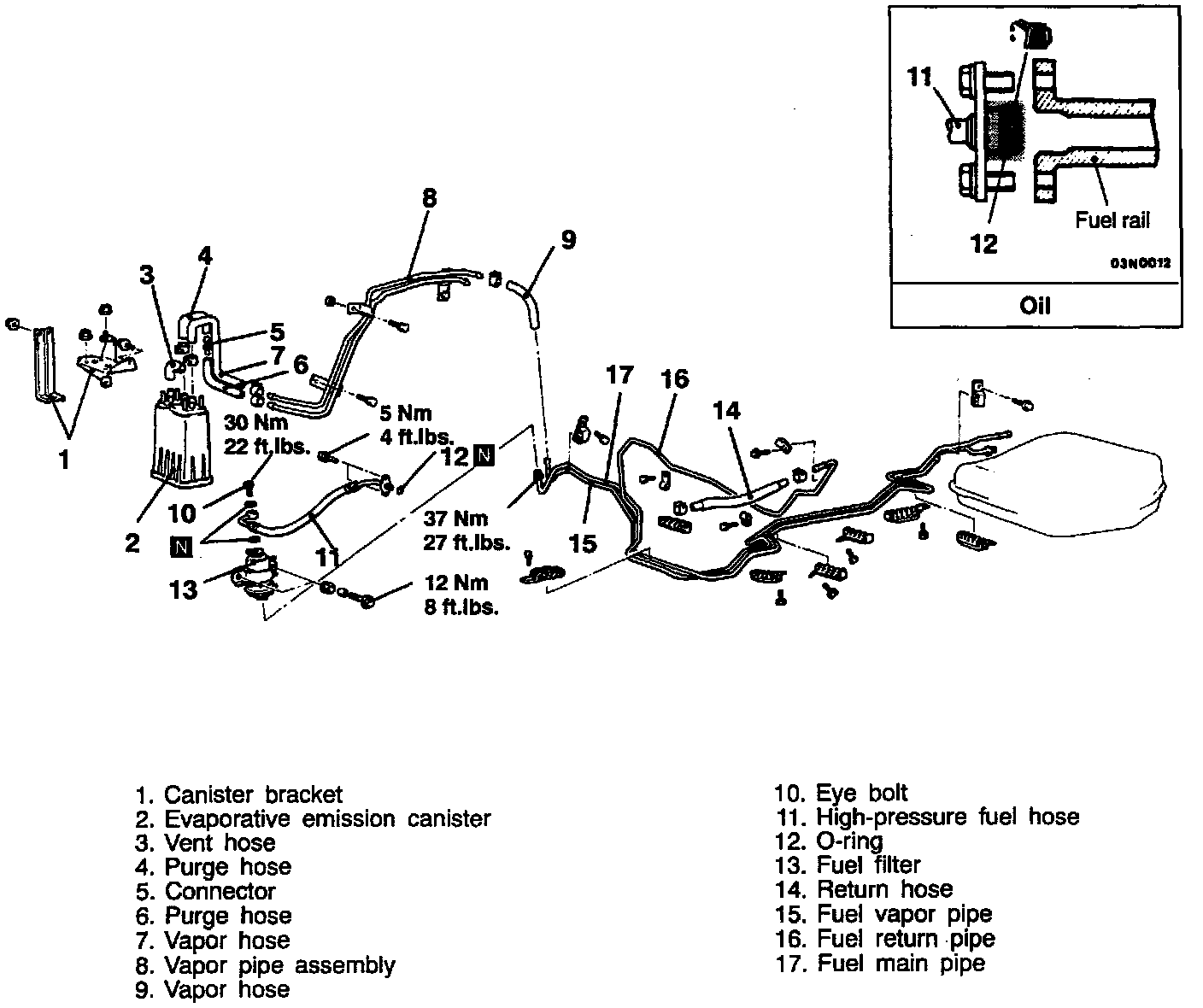

Fuel And Vapor Lines:
