Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

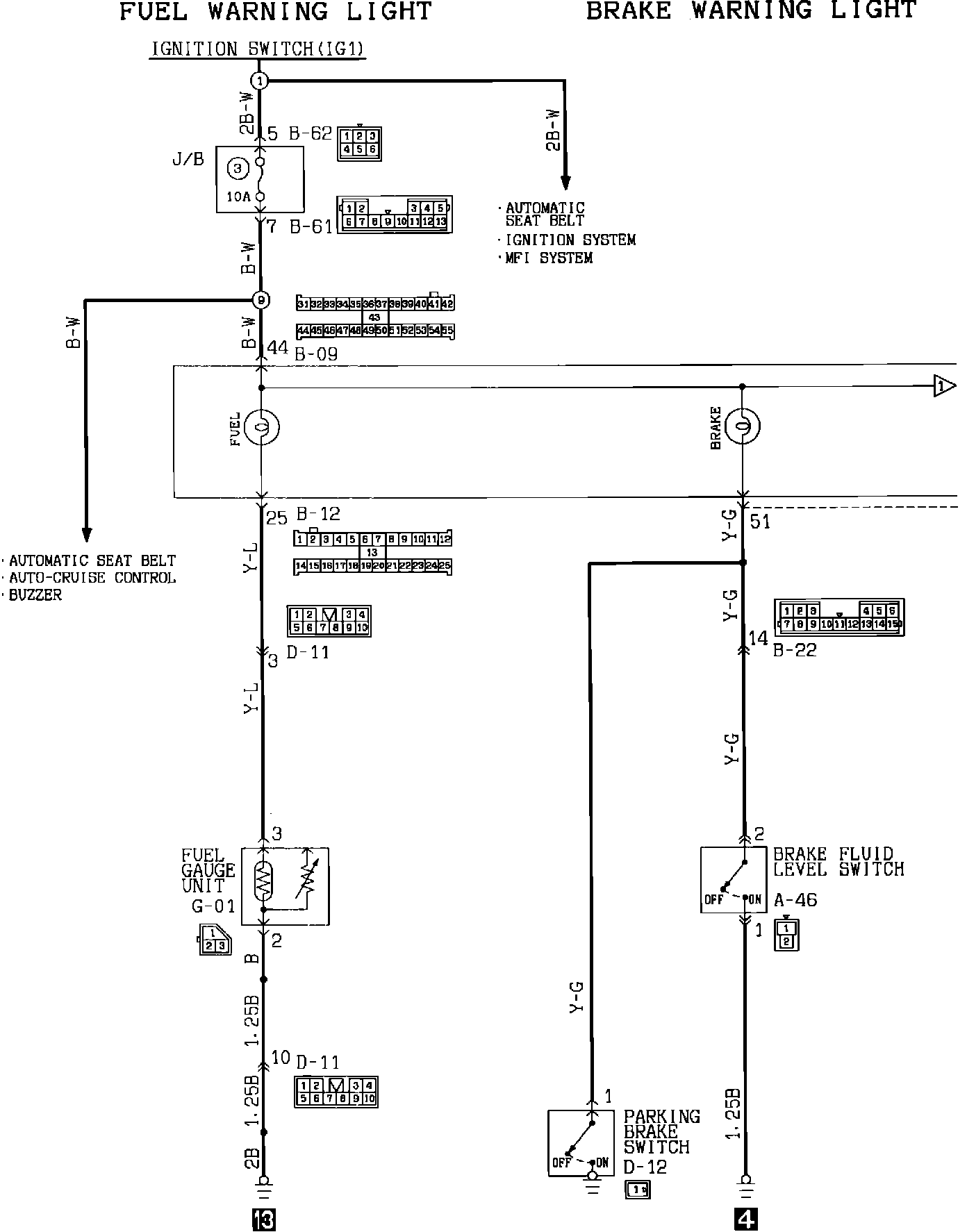

Warning Light Circuits:
Warning Light Circuits:
