Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Without Theft-Alarm

Without Theft-Alarm

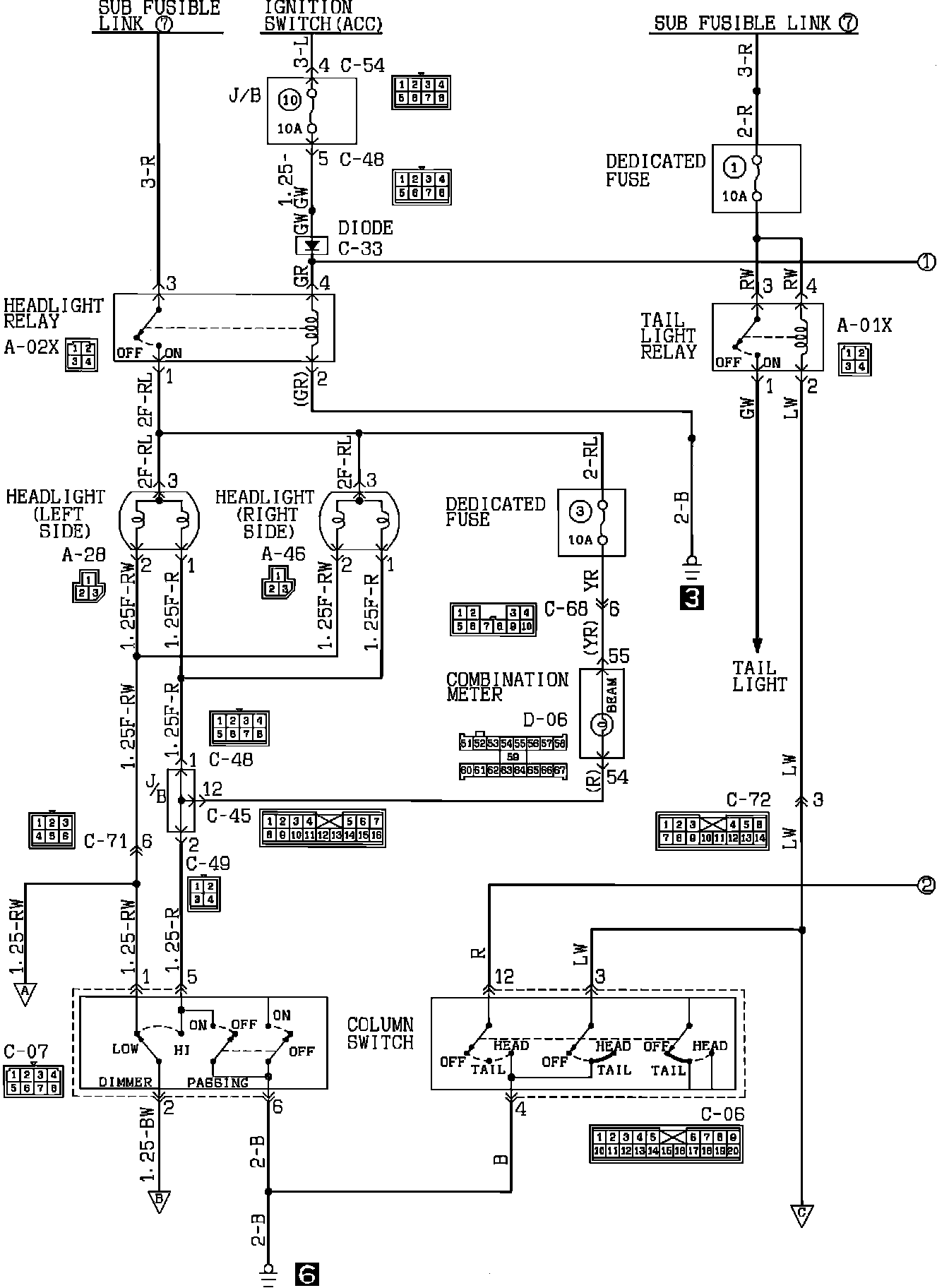

Headlamp (With-Daytime Running Light):

Headlamp (With-Daytime Running Light):
