Home
>>
Eagle
>>
1991
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
With Daytime Running Lamps
With Daytime Running Lamps

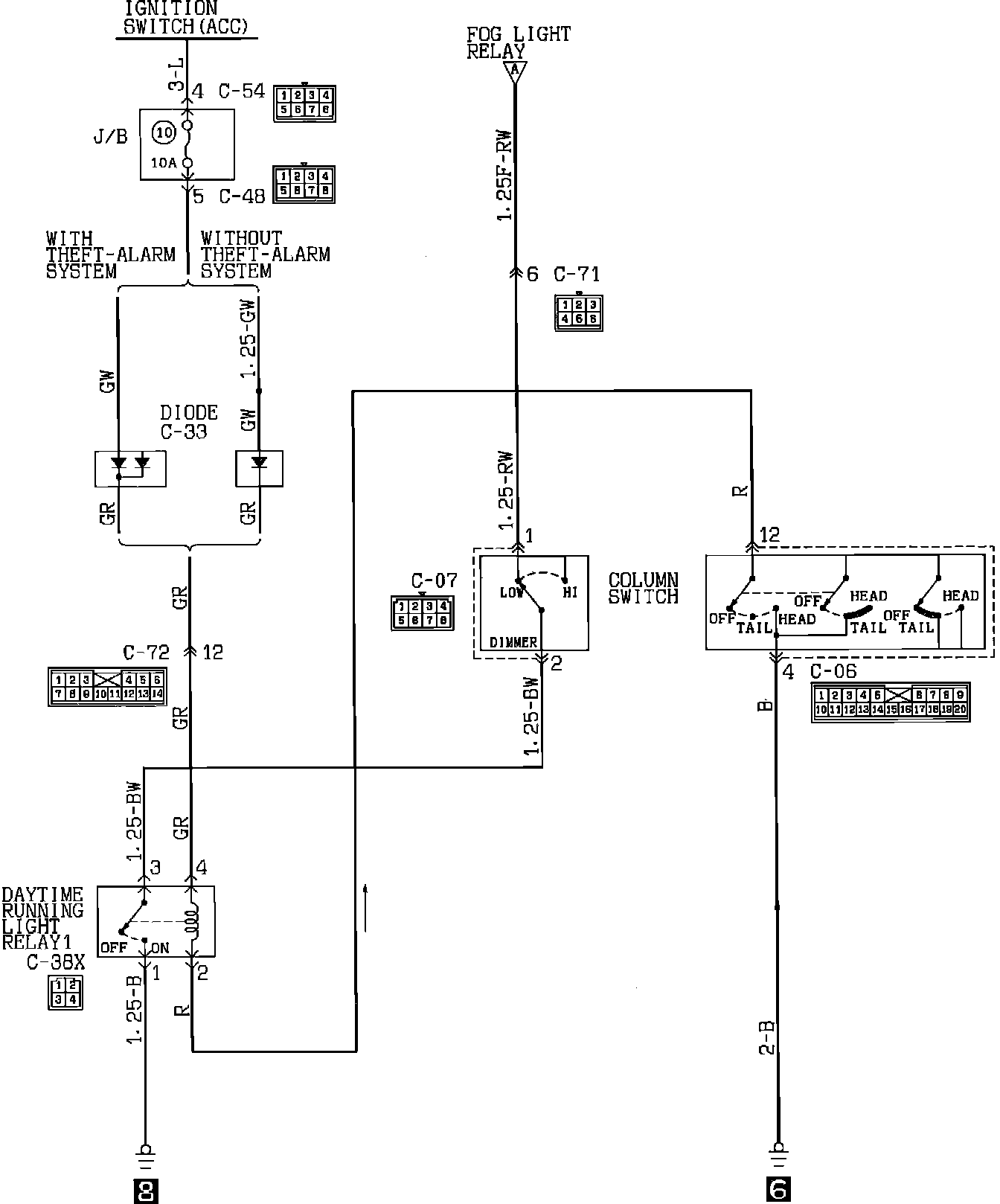

Fog Lamp (With-Daytime Running Light):
Fog Lamp (All):
