Eagle
>>
1991
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
3 Speed
3 Speed

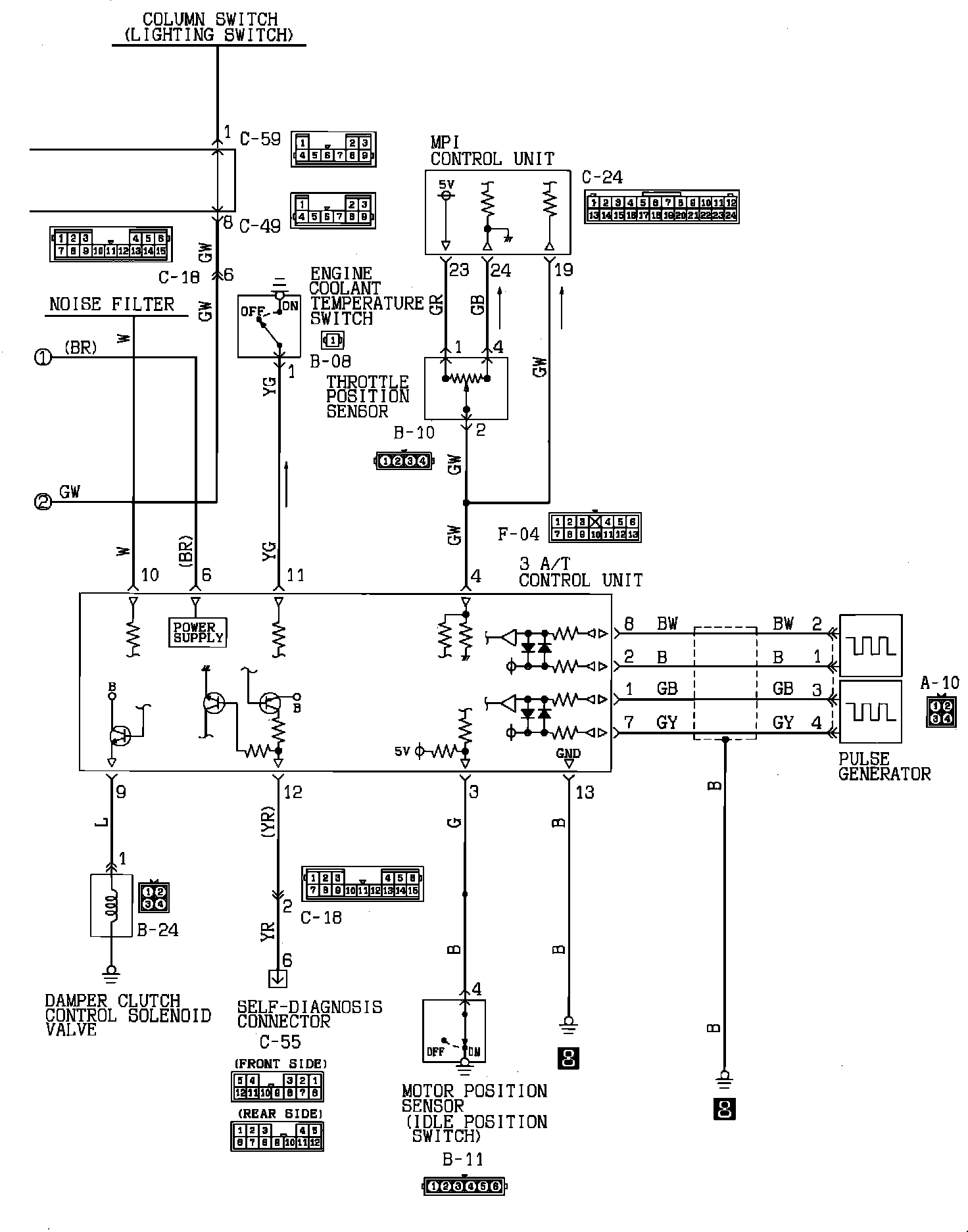

Automatic Transmission W/3 Speed Sedan:
Automatic Transaxle. 3 Speed:
