3A DRBII Communication Test

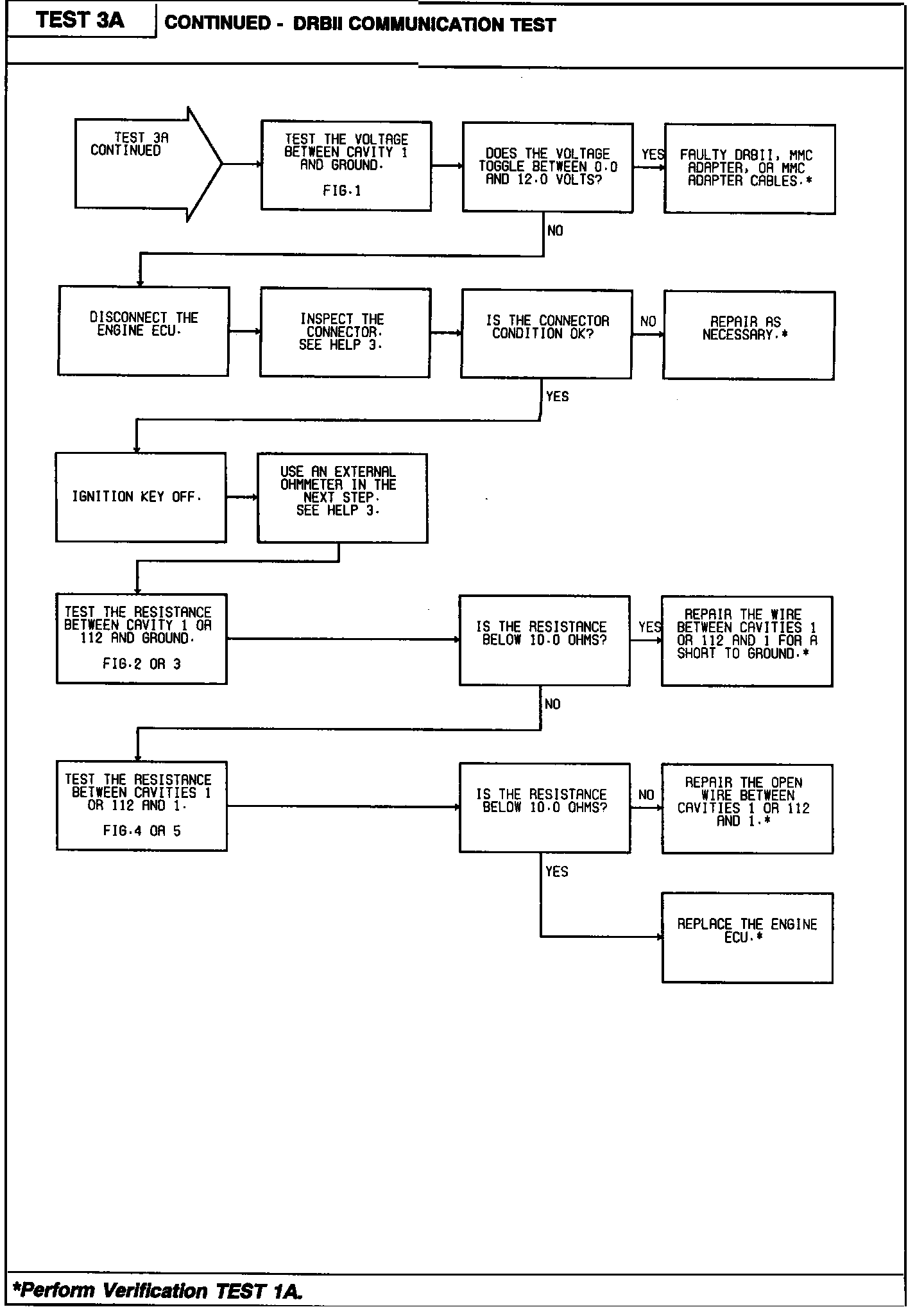

2 Of 6:



1 Of 6, Start Of Test 3A:



4 Of 6:



3 Of 6, Test 3A Continued.:



6 Of 6:



5 Of 6, End Of Test 3A:
