Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Early Production >> Less Daytime Running Lights - Canada

Less Daytime Running Lights - Canada

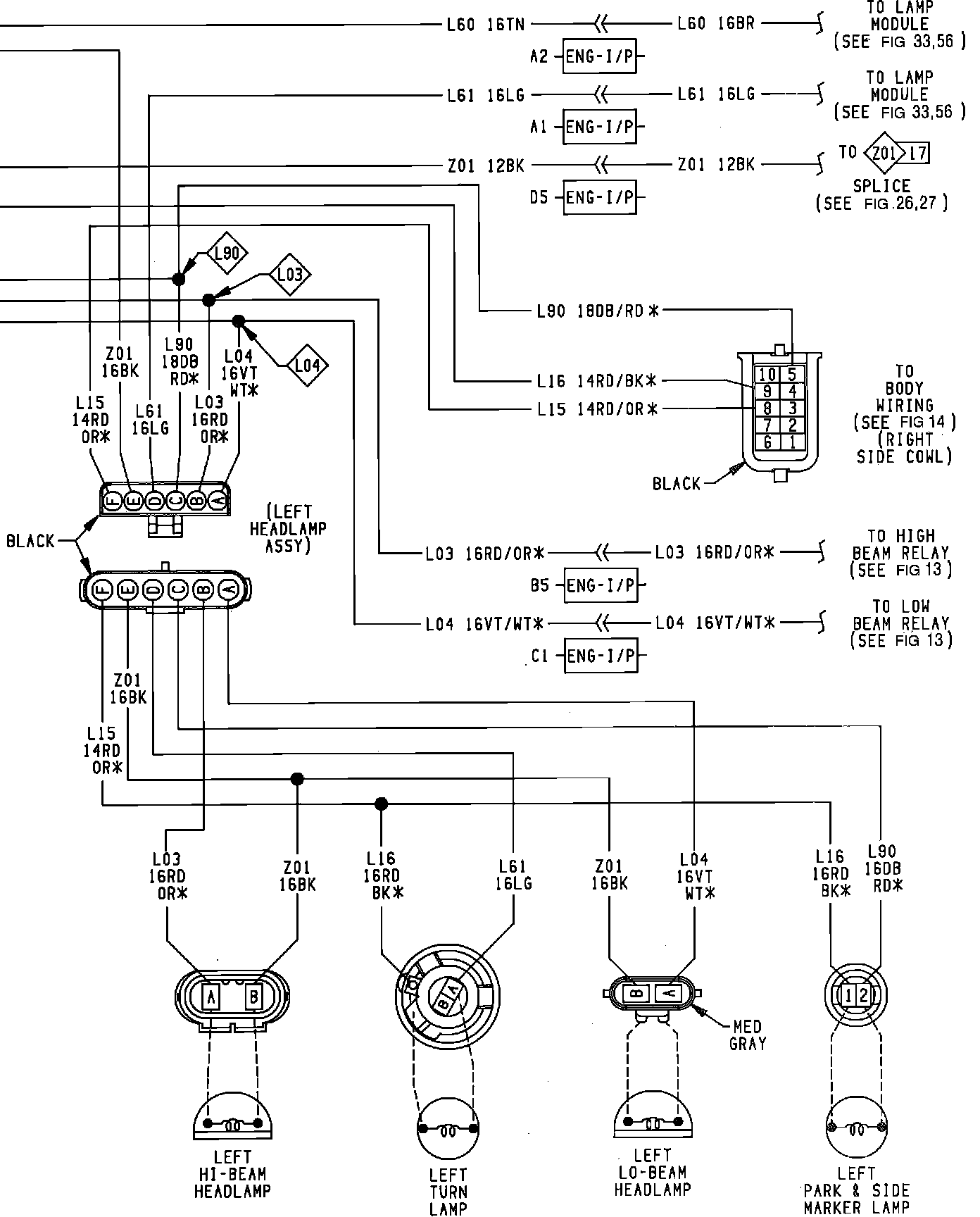

Front End Lights (Less Daytime Running Lights):



Front End Lights (Less Daytime Running Lights):
