Installation

INSTALLATION





1. Apply Mopar Lock & Seal or equivalent to new flywheel bolts.

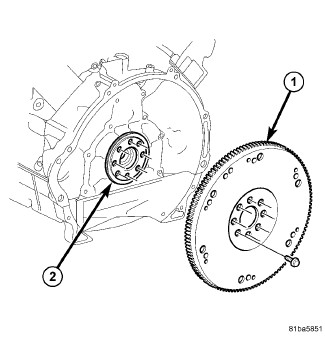

2. Install flywheel (1) on engine crankshaft (2) and install flywheel bolts.





3. Tighten flywheel (1) bolts in sequence to 75 Nm (55 ft. lbs.).





4. Install clutch assembly (1) Clutch Disc - Installation on flywheel (2). Install clutch housing and transmission. TR6060 Manual Transmission - Installation
