Heated Seat Switch - Description

DESCRIPTION





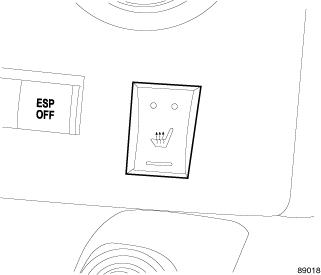

The heated seat switches (3) are located in the instrument panel (1). The two switches are snapped into mounting holes in the instrument panel center bezel (2). The two heated seat switches are identical in appearance and construction.





Each heated seat switch provides a resistor multiplexed signal to the Cab Compartment Node (CCN). Amber Light Emitting Diodes (LEDS) in the top portion of each switch indicate the level of heat in use: two LEDs are illuminated for high, one for low, and none for off. Pressing the switch once selects high level heating. Pressing the switch a second time selects low level heating. Pressing the switch a third time shuts the heating elements off.

The LED indicators in each heated seat switch cannot be repaired. If the LED indicators are inoperative or damaged, or the switch is inoperative or damaged the individual heated seat switch assembly must be replaced.
