Connector Location Index

DESCRIPTION
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

CONNECTORS

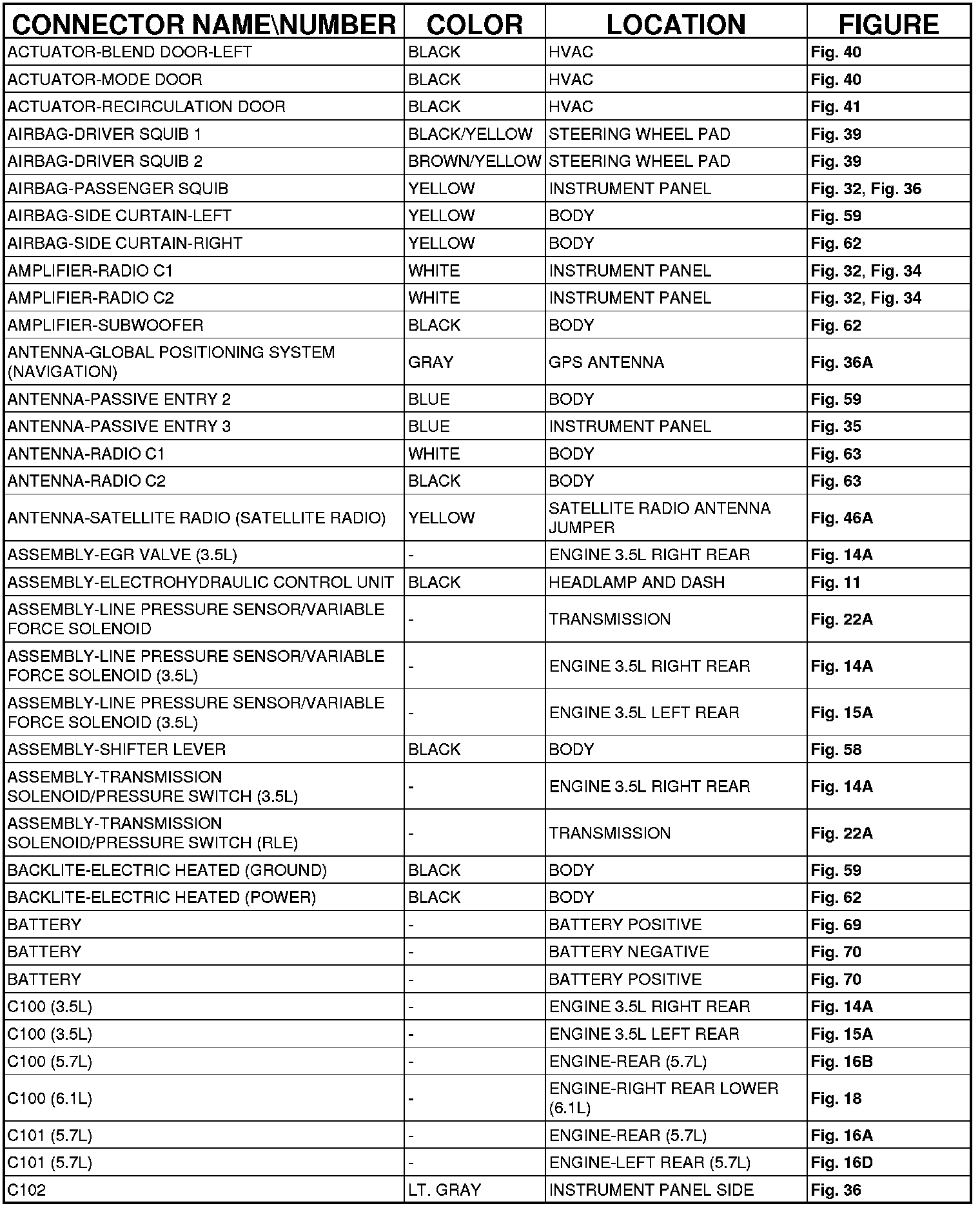

Ac-C102:

C102-C311(SUNROOF):

C313-Co:

Co-Fu:

Fu-La:

La-Mi:

Mo-Mo:

Mo-Re:

Re-Se:

Se-Sp:

Sp-Tr:
