Installation

INSTALLATION

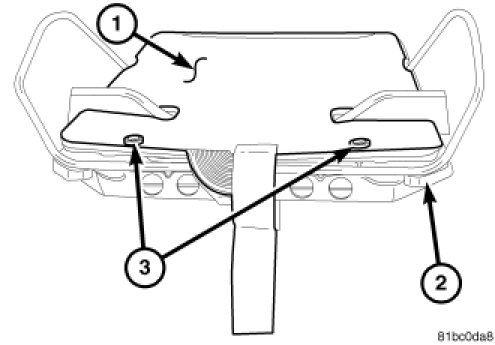

1. Lay the flex mat (1) onto the seat cushion frame (2) and firmly snap the plastic push pins (3) into place.
2. Install the seat cushion onto the seat cushion frame (2) Seat Cushion - Installation.




3. Connect the flex mat electrical connector (2) to the OCM (1).

CAUTION: Make sure the electrical connector membrane is routed into the retaining clip so it doesn't get chaffed.

4. Install the seat into the vehicle Installation.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. PERSONAL INJURY OR DEATH MAY RESULT IF THE SYSTEM TEST IS NOT PERFORMED FIRST. FOR THE SYSTEM TEST, Supplemental Restraints Verification Test


WARNING: When replacing the flex mat, the OCM Rezero procedure must be performed Testing and Inspection.

5. Place battery access cover into place and install four bolts.
6. Close deck lid.
