C307

Component ID: 35
Component : C307

Connector:

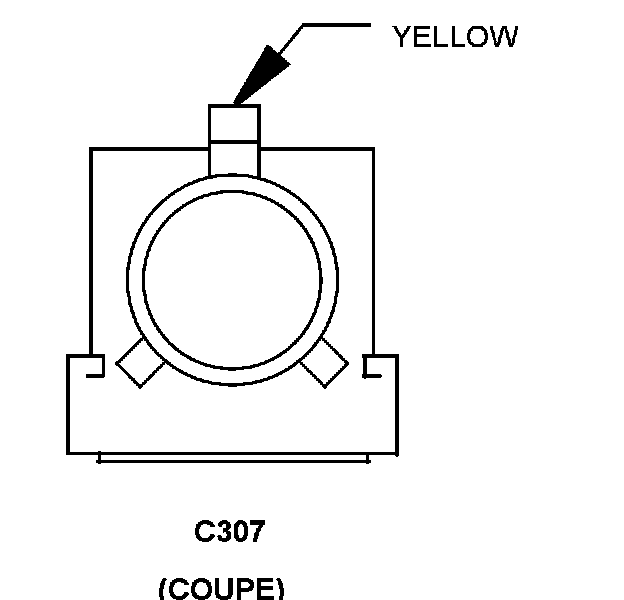

Name : C307
Color : YELLOW
# of pins : 2
Qualifier : (COUPE)
Gender : FEMALE




Pin Circuit Description
1 D106 6BK SATELLITE ANTENNA SIGNAL
2 D126 BK SATELLITE ANTENNA SHIELD



Connector:
Name : C307
Color : YELLOW
# of pins : 2
Qualifier : (COUPE)
Gender : MALE




Pin Circuit Description
1 D106 6BK SATELLITE ANTENNA SIGNAL
2 D126 BK SATELLITE ANTENNA SHIELD
