C302

Component ID: 32
Component : C302

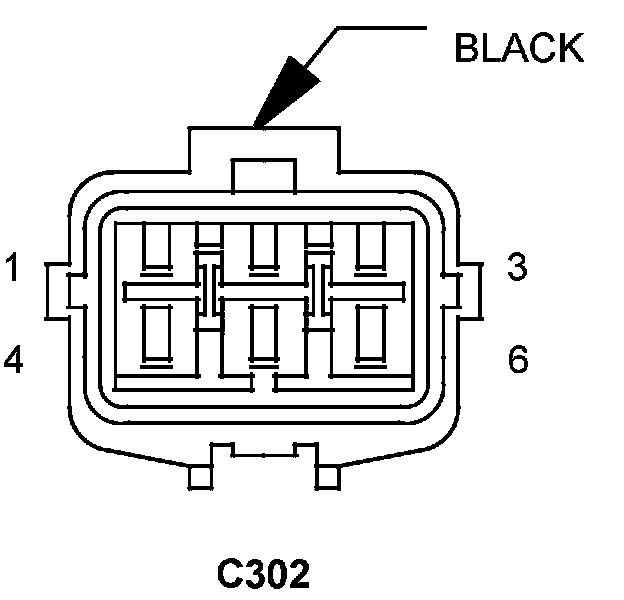

Connector:
Name : C302
Color : BLACK
# of pins : 6
Gender : FEMALE

Pin Circuit Description
1 Z918 18BK GROUND
2 L7 20WT/YL PARK LAMP SWITCH OUTPUT
3 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
4 L62 20WT/RD RIGHT REAR TURN SIGNAL DRIVER
5 - -
6 L1 20WT/LG BACKUP LAMP SWITCH OUTPUT

Component Location - 30

Component Location - 31

Connector:
Name : C302
Color : BLACK
# of pins : 6
Gender : MALE

Component Location - 31
