C100

Component ID: 14
Component : C100

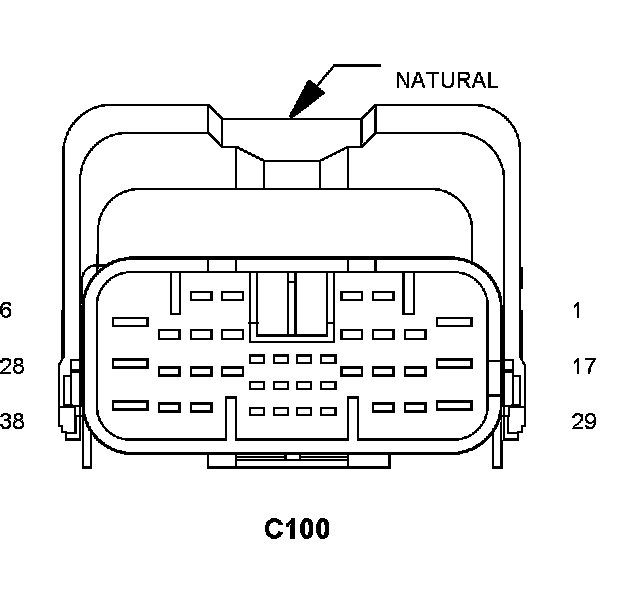

Connector:
Name : C100
Color : NATURAL
# of pins : 38
Gender : FEMALE




Pin Circuit Description
1 C7 12DB BLOWER MOTOR RELAY OUTPUT
2 W4 16BR/OR WIPER SWITCH HIGH SPEED OUTPUT
3 F855 20PK/YL 5 VOLT SUPPLY
4 Q2 18WT DECKLID RELEASE DRIVER
5 A105 18DB/RD FUSED B(+)
6 A116 14YL/RD FUSED B(+)
7 Z11 18BK/LG GROUND
8 F13 18PK FUSED RUN/ACC RELAY OUTPUT
9 D25 18WT/VT PCI BUS
10 D20 18WT/LG SCI RECEIVE
11 D21 18WT/BR SCI TRANSMIT
12 D24 20DB/WT FLASH ABS
13 X4 20DG/WT HORN RELAY CONTROL
14 G70 20VT/LB HOOD AJAR SWITCH SENSE
15 G11 20VT/TN BRAKE WARNING INDICATOR DRIVER
16 L61 20LG LEFT TURN SIGNAL
17 A1 14RD FUSED B(+)
18 L60 20TN RIGHT TURN SIGNAL
19 A114 18GY/RD FUSED B(+) (I.O.D.)
20 F89 20RD/WT RUN/ACC RELAY CONTROL
21 L33 20LG/BR LEFT HIGH BEAM OUTPUT
22 L89 20WT LEFT FOG LAMP OUTPUT
23 T141 20YL/OR STARTER SWITCH SENSE
24 L34 20WT/GY RIGHT HIGH BEAM OUTPUT
25 L124 20WT/DB HEADLAMP RELAY CONTROL
26 L63 20WT/DG LEFT REAR TURN SIGNAL DRIVER
27 G4 20LB/VT FUEL LEVEL SIGNAL
28 A128 14RD/OR FUSED B(+)
29 Q51 16OR/VT ADJUSTABLE PEDALS MOTOR DRIVER (DOWN)
30 L90 20WT/OR RIGHT FOG LAMP OUTPUT
31 G5 20OR FUSED IGNITION SWITCH OUTPUT (RUN-START)
32 F100 18PK/VT FUSED IGNITION SWITCH OUTPUT (RUN)
33 G78 20VT/OR DECKLID AJAR SWITCH SENSE
34 C80 20DB/LB REAR WINDOW DEFOGGER RELAY CONTROL
35 L7 20WT/YL PARK LAMP SWITCH OUTPUT
36 L62 20WT/RD RIGHT REAR TURN SIGNAL DRIVER
37 G25 20VT/TN LIFTGATE RELEASE SWITCH SENSE
38 Q52 18OR/GY ADJUSTABLE PEDALS MOTOR DRIVER (UP)

Component Location - 18






Connector:
Name : C100
Color : NATURAL
# of pins : 38
Gender : MALE




Pin Circuit Description
1 C7 12DB BLOWER MOTOR RELAY OUTPUT
2 W4 16BR/OR WIPER SWITCH HIGH SPEED OUTPUT
3 - -
4 Q2 18WT/TN DECKLID RELEASE DRIVER
5 A105 18DB/RD FUSED B(+)
6 A116 14YL/RD FUSED B(+)
7 Z902 18BK/LG GROUND
8 F13 18PK FUSED RUN/ACC RELAY OUTPUT
9 D25 20WT/VT PCI BUS
10 - -
11 - -
12 D24 20DB/WT FLASH ABS
13 X4 20DG/WT HORN RELAY CONTROL
14 G70 20VT/LB HOOD AJAR SWITCH SENSE
15 G11 20VT/TN BRAKE WARNING INDICATOR DRIVER
16 L61 20LG LEFT TURN SIGNAL
17 A1 14RD FUSED B(+)
18 L60 20TN RIGHT TURN SIGNAL
19 A114 20GY/RD FUSED B(+) (I.O.D.)
20 F89 20RD/WT RUN/ACC RELAY CONTROL
21 L33 20LG/BR LEFT HIGH BEAM OUTPUT
22 L89 20WT LEFT FOG LAMP OUTPUT
23 T141 20YL/OR STARTER SWITCH SENSE
24 L34 20WT/GY RIGHT HIGH BEAM OUTPUT
25 L124 20WT/DB HEADLAMP RELAY CONTROL
26 L63 20WT/DG LEFT REAR TURN SIGNAL DRIVER
27 G4 20LB/VT FUEL LEVEL SIGNAL
28 A128 14RD/OR FUSED B(+)
29 Q51 16OR/VT ADJUSTABLE PEDALS MOTOR DRIVER (DOWN)
30 L90 20WT/OR RIGHT FOG LAMP OUTPUT
31 G5 20OR FUSED IGNITION SWITCH OUTPUT (RUN-START)
32 F100 20PK/VT FUSED IGNITION SWITCH OUTPUT (RUN)
33 G78 20VT/OR DECKLID AJAR SWITCH SENSE
34 C80 20DB/LB REAR WINDOW DEFOGGER RELAY CONTROL
35 L7 20WT/YL PARK LAMP SWITCH OUTPUT
36 L62 20WT/RD RIGHT REAR TURN SIGNAL DRIVER
37 G25 20VT/TN LIFTGATE RELEASE SWITCH SENSE
38 Q52 16OR/GY ADJUSTABLE PEDALS MOTOR DRIVER (UP)

Component Location - 18
