Alarm Module, (Vehicle Antitheft)

Component ID: 164

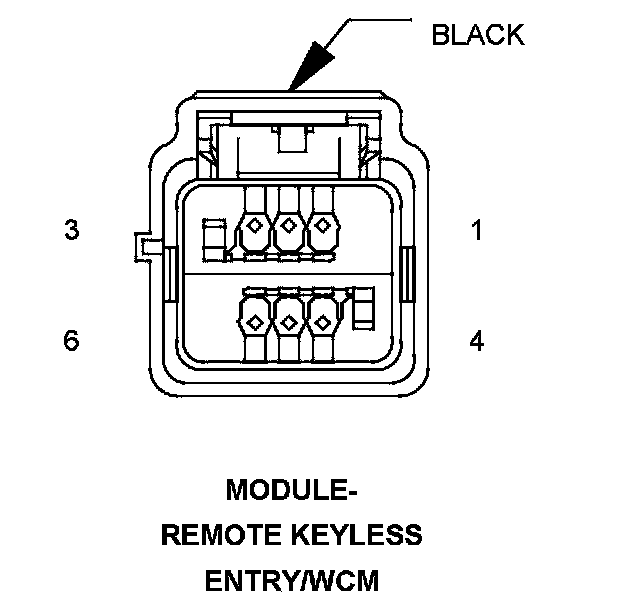

Component : MODULE-REMOTE KEYLESS ENTRY/WCM

Connector:
Name : MODULE-REMOTE KEYLESS ENTRY/WCM
Color : BLACK
# of pins : 6




Pin Circuit Description
1 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
2 D9 20WT/GY RKE MODULE PROGRAM ENABLE
3 Z943 20BK/LG GROUND
4 - -
5 - -
6 M1 20YL/VT IOD-B(+)
