Home >> Dodge >> 2005 >> Stratus Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connectors >> D Connector - Floor and Roof

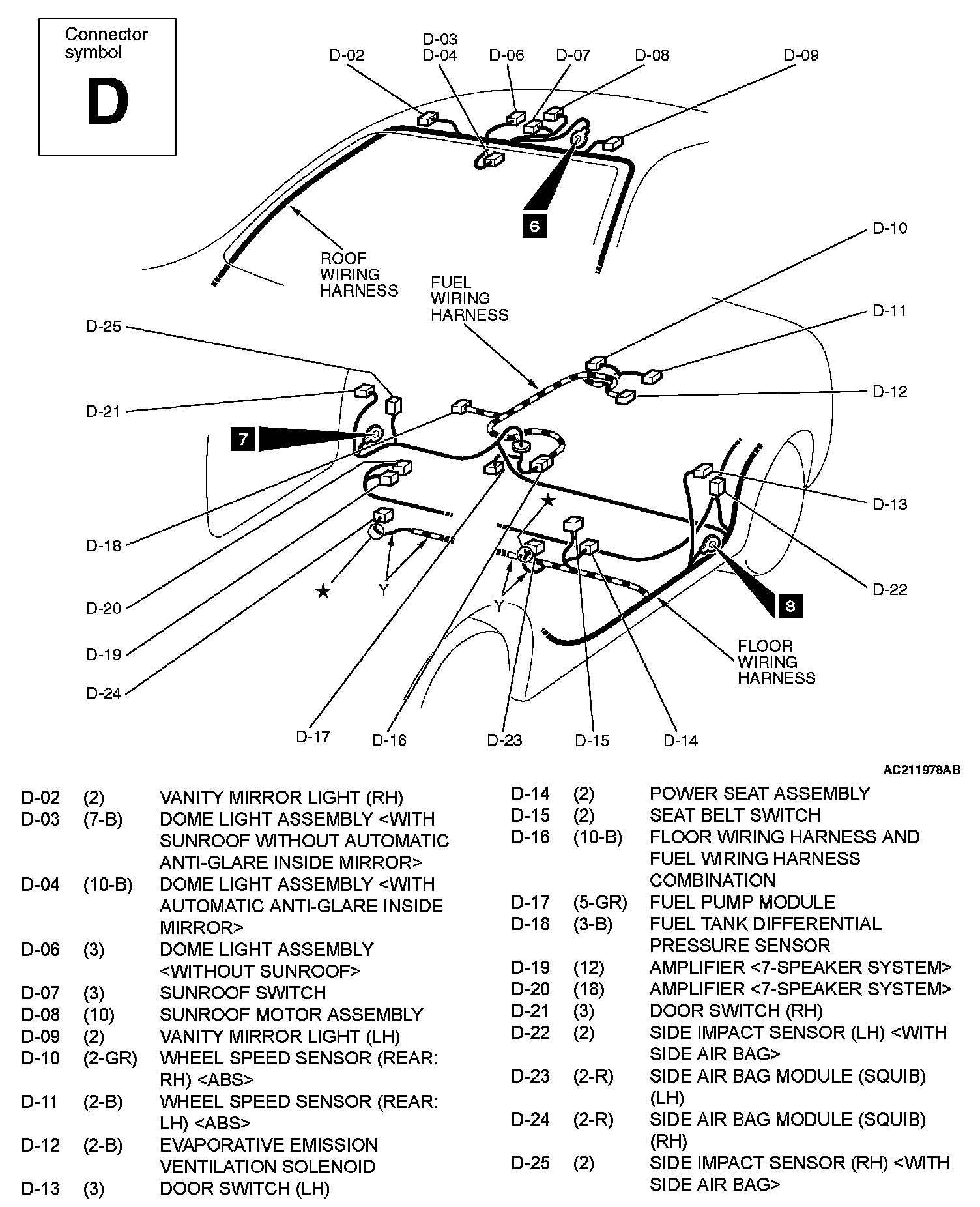

D Connector - Floor and Roof

Floor And Roof - D Connector [ 02(2) Thru 25(2) ]:
