Front

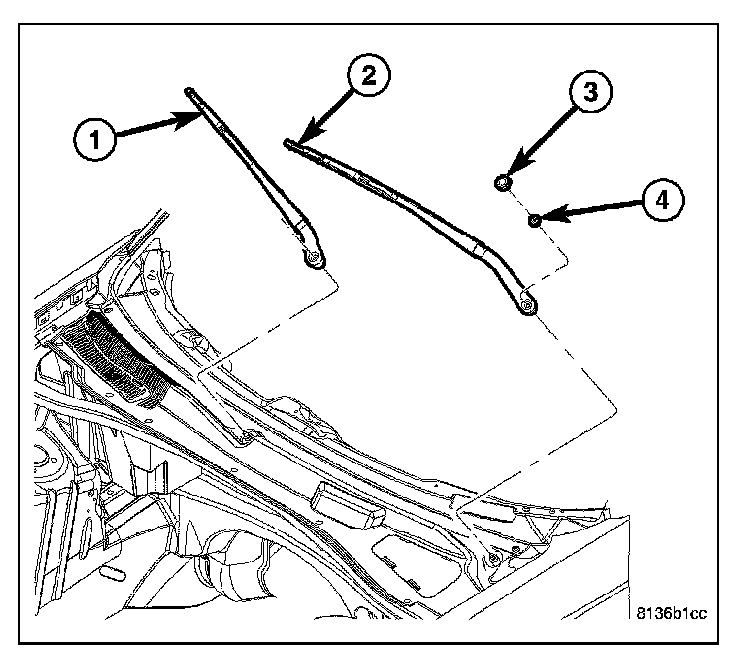

REMOVAL




1. Remove the nut caps (3).
2. Remove the retaining nuts (4).




3. Using a suitable two jaw puller (5), separate the wiper arm (7) from the wiper pivot.




4. Remove the wiper arms (1 and 2).

INSTALLATION




1. Install wiper arms (1) on wiper arm pivots.
2. Install retaining nuts (4). Torque nuts to 18 N.m (13 ft. lbs.).
3. Install nut caps (3).
