C307

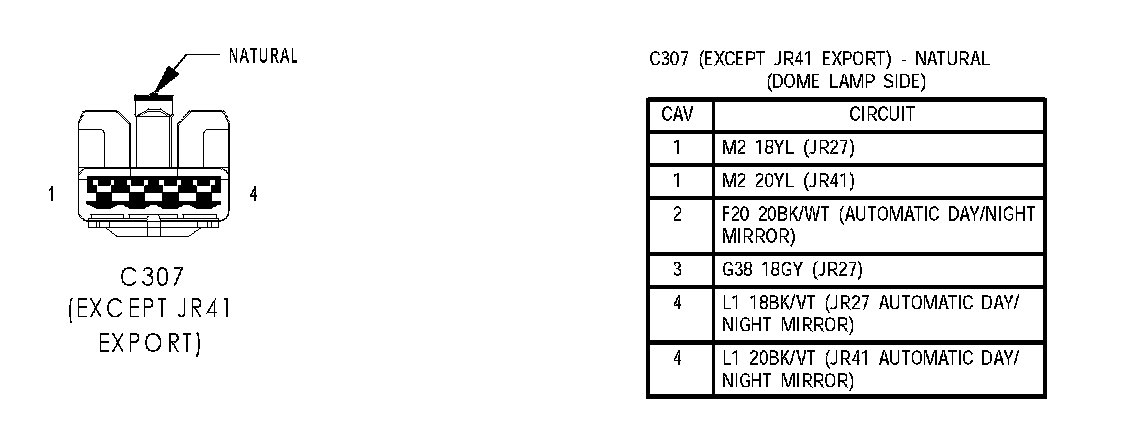

C307(Except JR41 Export):



C307(Except JR41 Export):



C307(JR 41 Export):



C307 (JR41 Export):
