Home >> Dodge >> 2003 >> Intrepid V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Lamp >> System Diagram

System Diagram

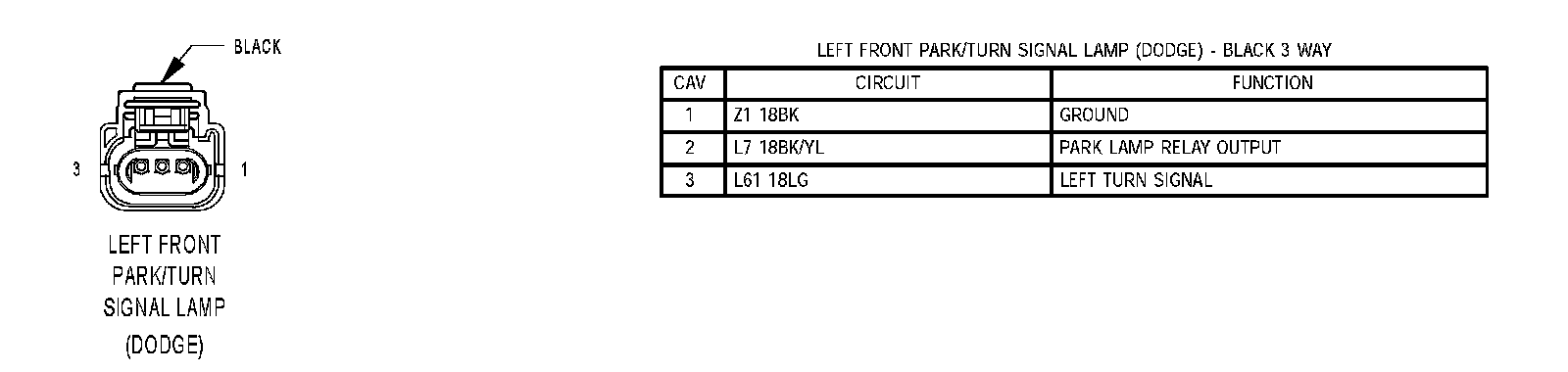

Left Front Park/Turn Signal Lamp (DODGE):



Right Front Park/Turn Signal Lamp (DODGE):
