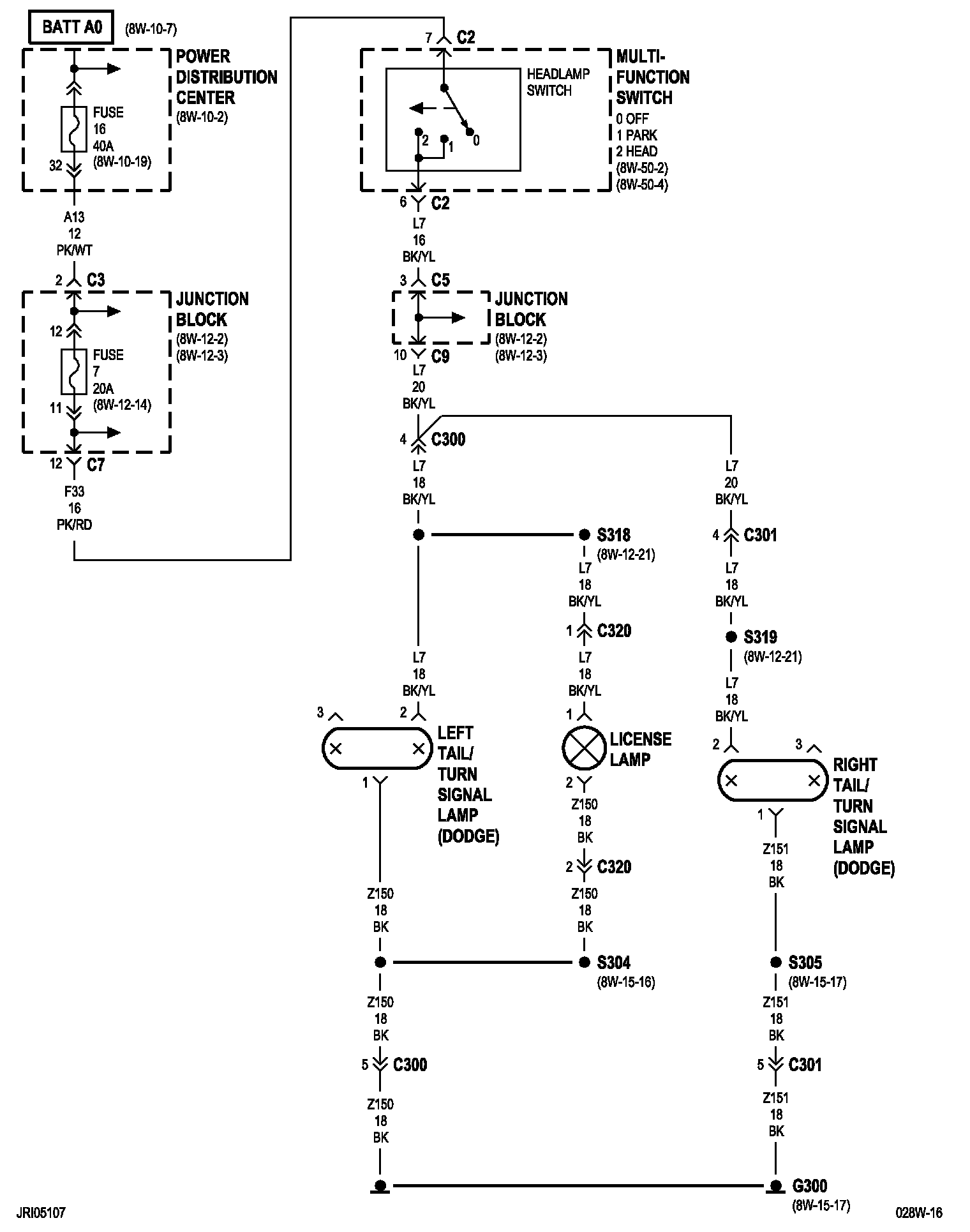

Rear Lighting

8w-51-2:

8w-51-3:

8w-51-7 (JR41 Except Built-Up-Export):

8w-51-8 (JR41 Chrysler/Built-Up-Export):

8w-51-9 (JR41 Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
