Home >> Dodge >> 2002 >> Intrepid R/T V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 2

Figure 2

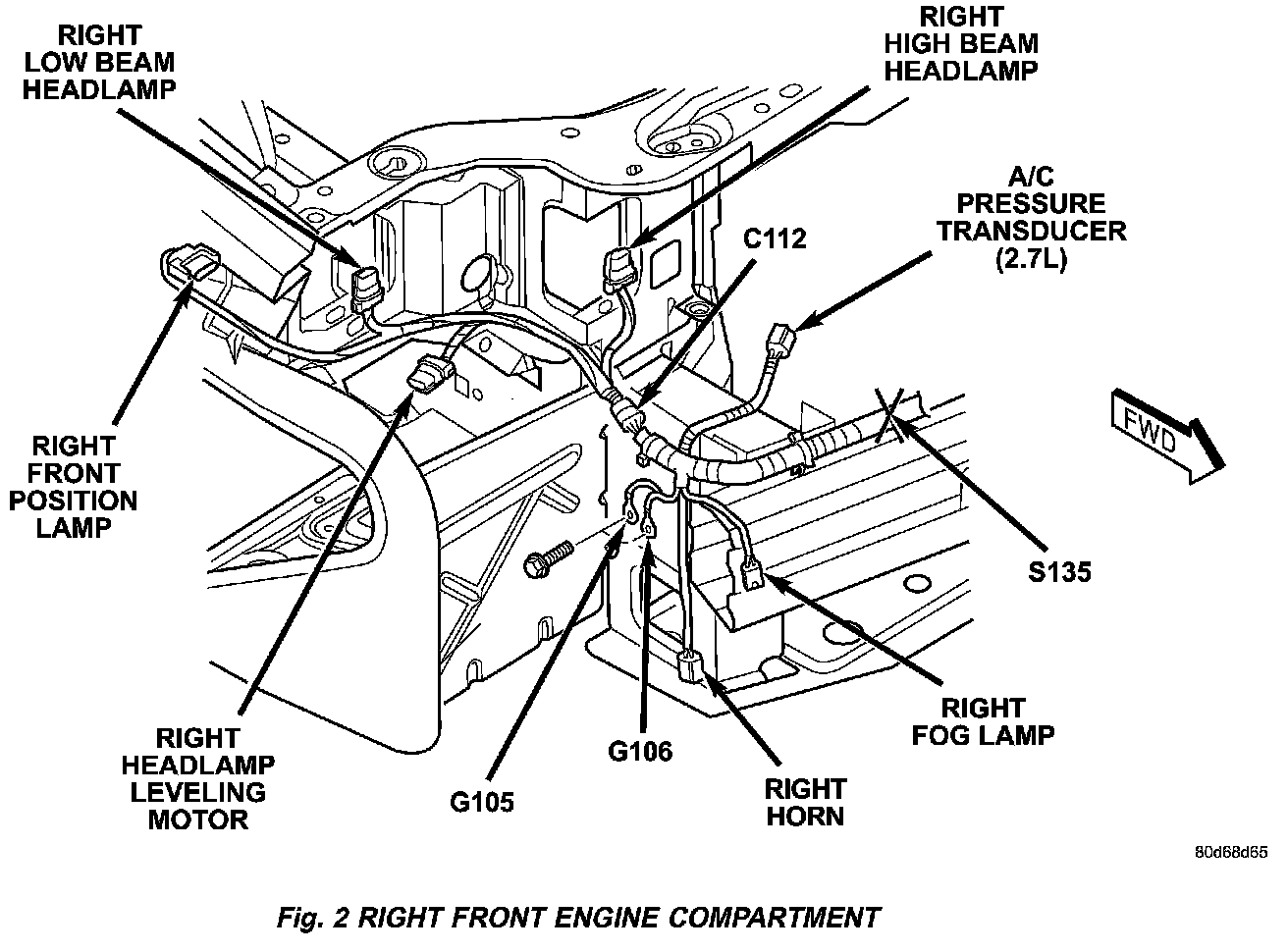

Fig. 2 Right Front Engine Compartment:
