Blower Motor Electrical Diagnosis Test

Blower Motor Electrical Diagnosis:

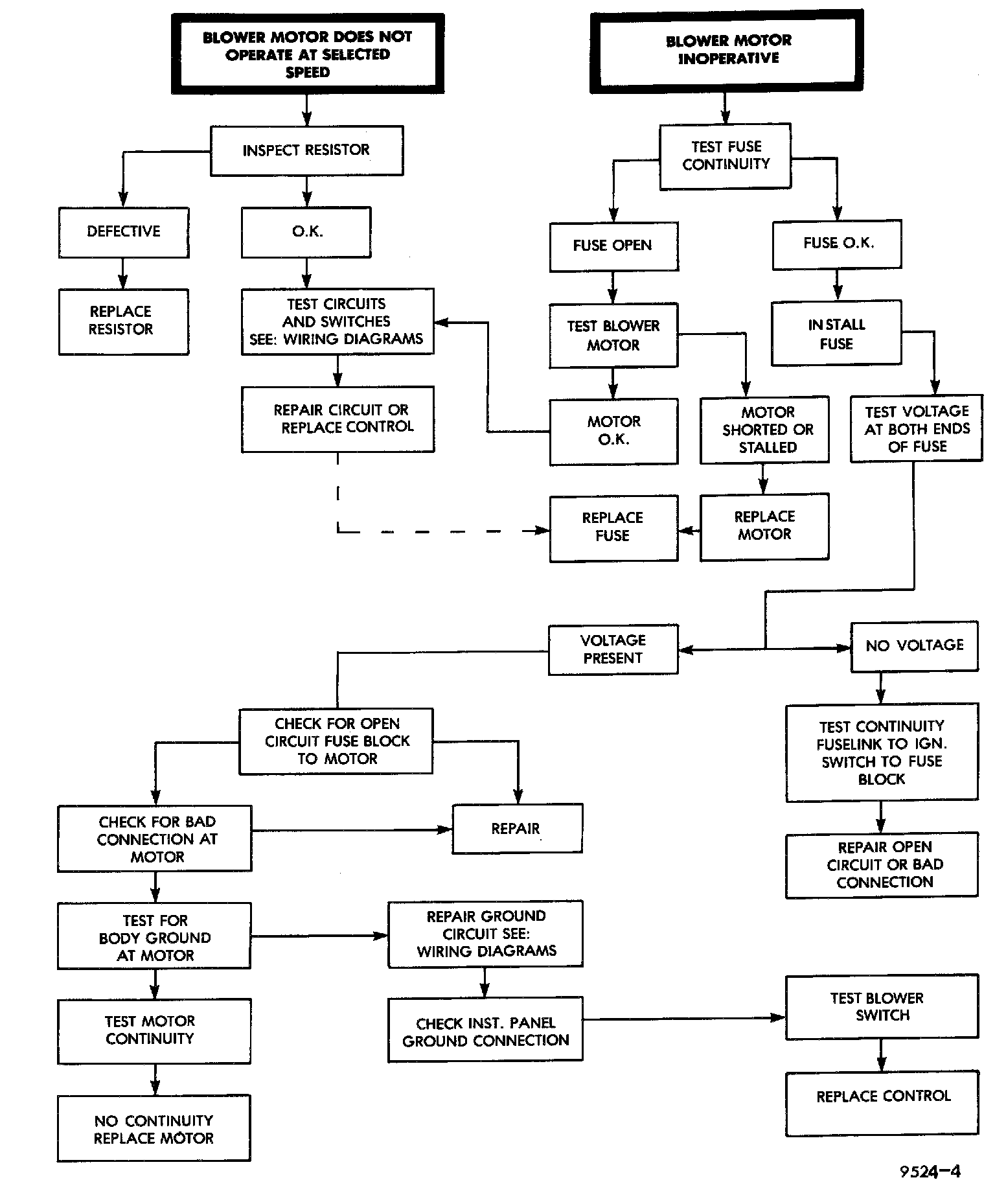

Refer to the Blower Motor Electrical System Diagnosis chart
